4 configurations in this family
10 Gigabit SFP+ Fiber Modules - SR, LR, ER & ZR

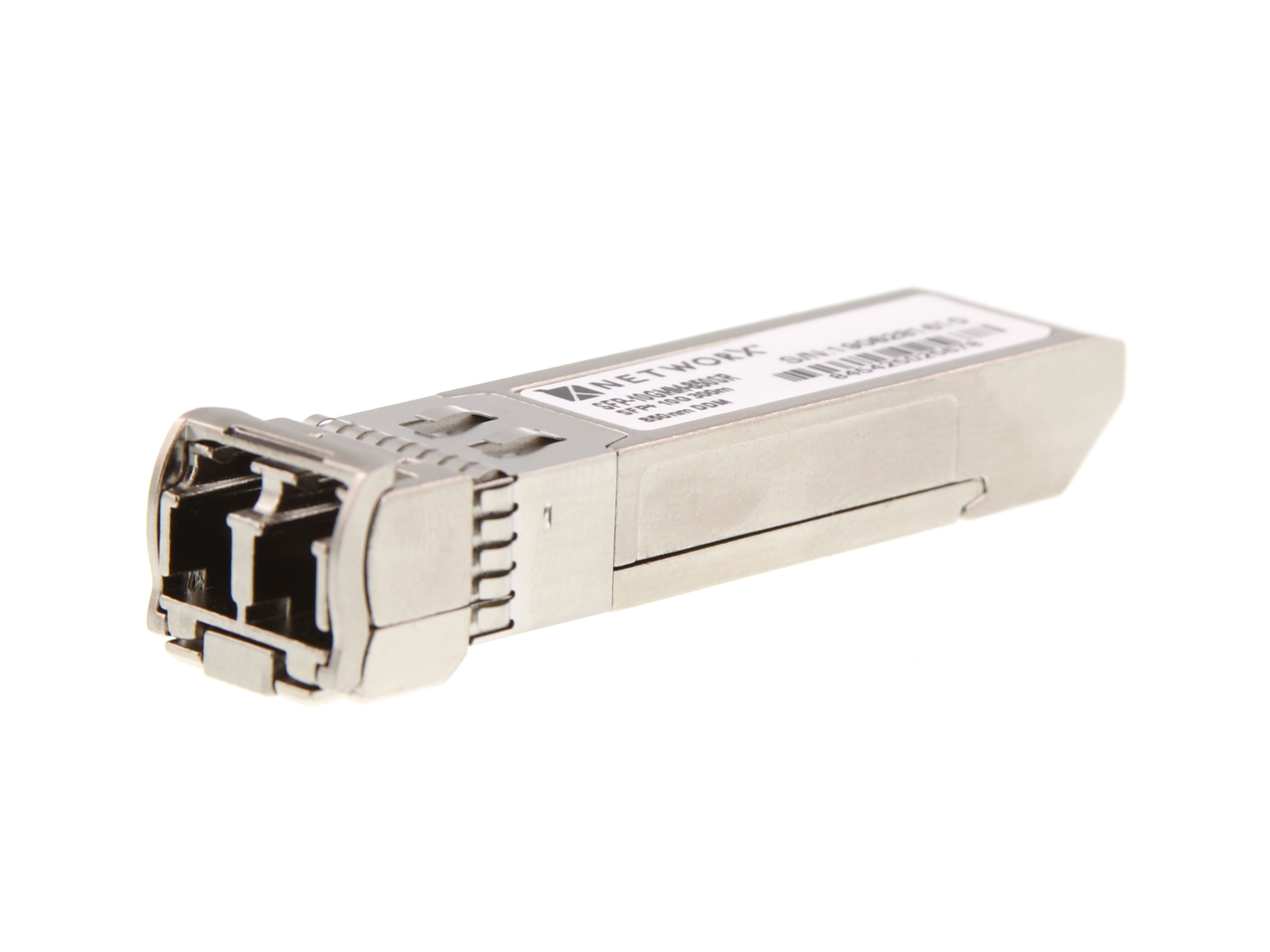

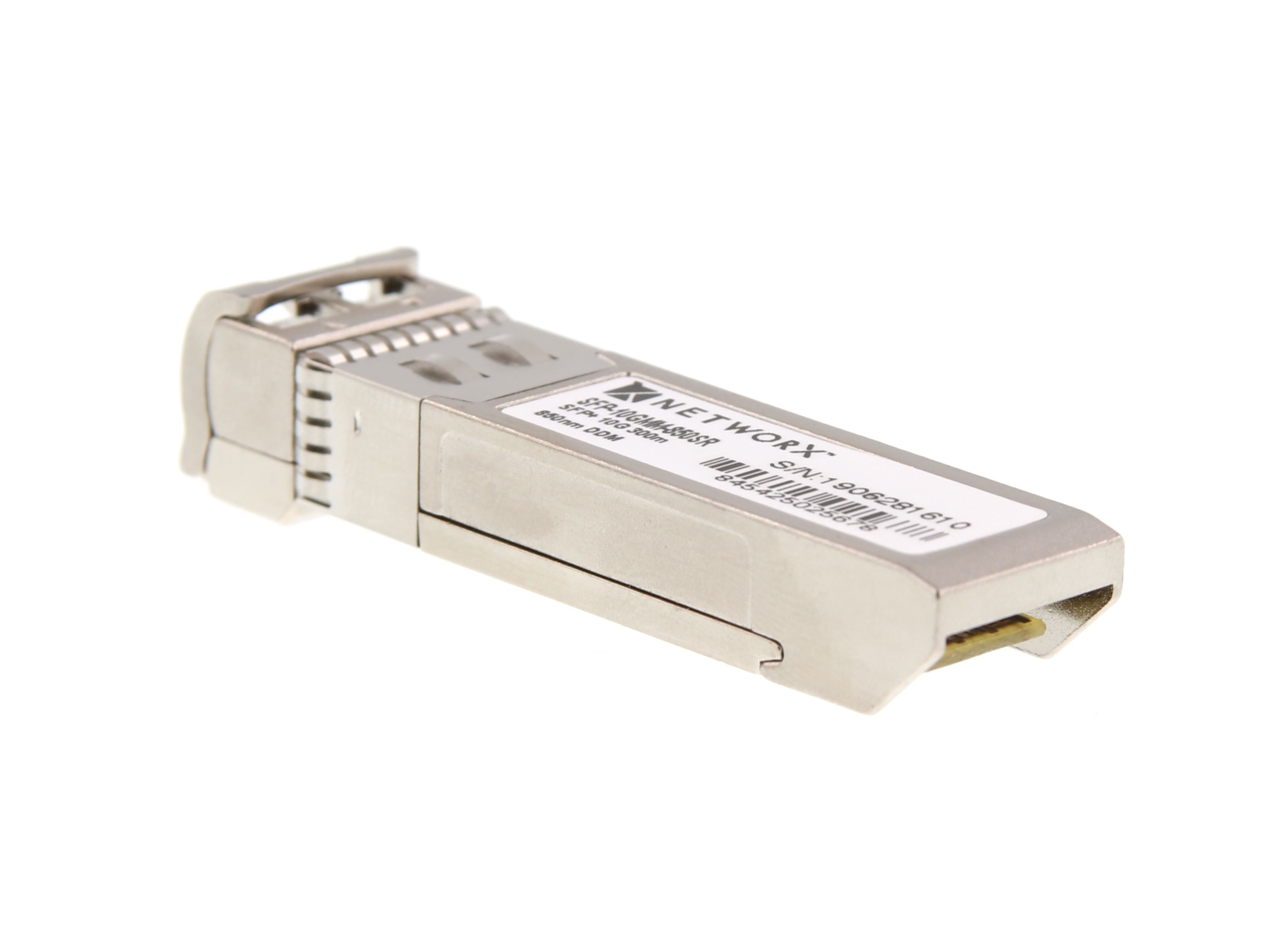

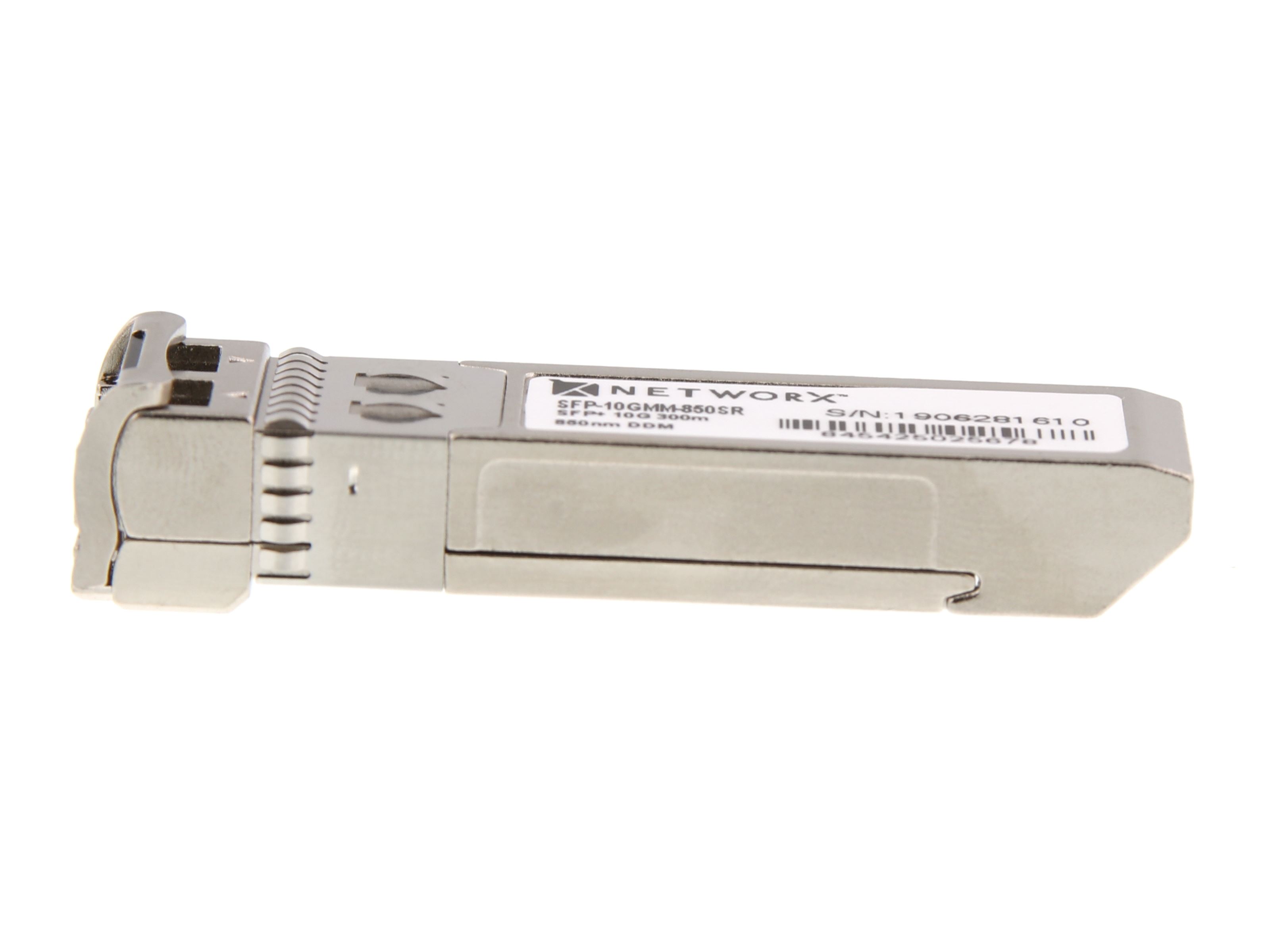

10 Gigabit SFP+ Fiber Modules provide hot-swappable 10Gbps fiber connectivity with multimode and singlemode options supporting distances from 300 meters up to 80 kilometers.
- P/N
- SFP-10G
Available configurations 4
- SFP+ 10 Gigabit Fiber Module - 10GBase-ER, LC Singlemode, 40km, 1550nm
- SFP+ 10 Gigabit Fiber Module - 10GBase-LR, LC Singlemode, 10km, 1310nm
- SFP+ 10 Gigabit Fiber Module - 10GBase-SR, LC Multimode, 300m, 850nm
- SFP+ 10 Gigabit Fiber Module - 10GBase-ZR, LC Singlemode, 80km, 1550nm
| Configuration | SKU | GTIN | MSRP | Style | Connector | Fiber Type | Manufacturer | Maximum Data Transfer Rate | Wavelength | Laser Type | Power Supply | Digital Diagnostic Monitoring | Compliance | Warranty | RoHS Compliant | Color | Maximum Transfer Distance | Receiver |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SFP+ 10 Gigabit Fiber Module - 10GBase-ER, LC Singlemode, 40km, 1550nm | SFP-10GSM-1550ER | 00845425025692 | $301.99 | 10G SFP SM 1550nm ER | LC | Singlemode | Networx® | 10 Gbps | 1550nm | EML | +3.3V | Yes | SFF-8431 MSA, SFF-8432 MSA, SFF-8472 MSA, IEEE 802.3ae | 3 Year Warranty | Yes | Silver | 40km | |
| SFP+ 10 Gigabit Fiber Module - 10GBase-LR, LC Singlemode, 10km, 1310nm | SFP-10GSM-1310LR | 00845425025685 | $53.89 | 10G SFP SM 1310nm LR | LC | Singlemode | Networx® | 10 Gbps | 1310nm | DFB | +3.3V | Yes | SFF-8431, IEEE 802.3ae, 10GBASE-LR/LW | 3 Year Warranty | Yes | Silver | 10km | |
| SFP+ 10 Gigabit Fiber Module - 10GBase-SR, LC Multimode, 300m, 850nm | SFP-10GMM-850SR | 00845425025678 | $56.79 | 10G SFP MM 850nm SR | LC | Multimode | Networx® | 10 Gbps | 850nm | VCSEL | +3.3V | Yes | SFF-8431, IEEE 802.3ae, 10GBASE-SR/SW | 3 Year Warranty | Yes | Silver | 300m | |
| SFP+ 10 Gigabit Fiber Module - 10GBase-ZR, LC Singlemode, 80km, 1550nm | SFP-10GSM-1550ZR | 00845425025708 | $603.99 | 10G SFP SM 1550nm ZR | LC | Singlemode | Networx® | 10 Gbps | 1550nm | Cooled EML | +3.3V | Yes | SFF-8431 MSA, SFF-8432 MSA, SFF-8472 MSA, IEEE 802.3ae | 3 Year Warranty | Yes | Silver | 80km | High-Sensitivity APD |
About this family
10 Gigabit SFP+ Fiber Modules provide flexible optical connectivity for high-speed network equipment and are designed for use with the Networx® 10 Gigabit Media Converter. Available in 10GBase-SR, LR, ER, and ZR configurations, the series supports both multimode and singlemode fiber with transmission distances ranging from 300 meters to 80 kilometers. Each compact, hot-swappable module operates at 10Gbps in full duplex mode, allowing network administrators to select the appropriate fiber type, wavelength, and transmission distance for short-range, campus, and long-distance network links.
- 10Gbps data transfer rate
- SR, LR, ER, and ZR options
- Multimode and singlemode models
- Full duplex operation
- Supports distances up to 80km
- Enables flexible fiber deployments
- Simplifies network equipment upgrades
- Supports short and long-distance links
- Hot-swappable for easier maintenance
- Ideal for high-speed 10G networks
