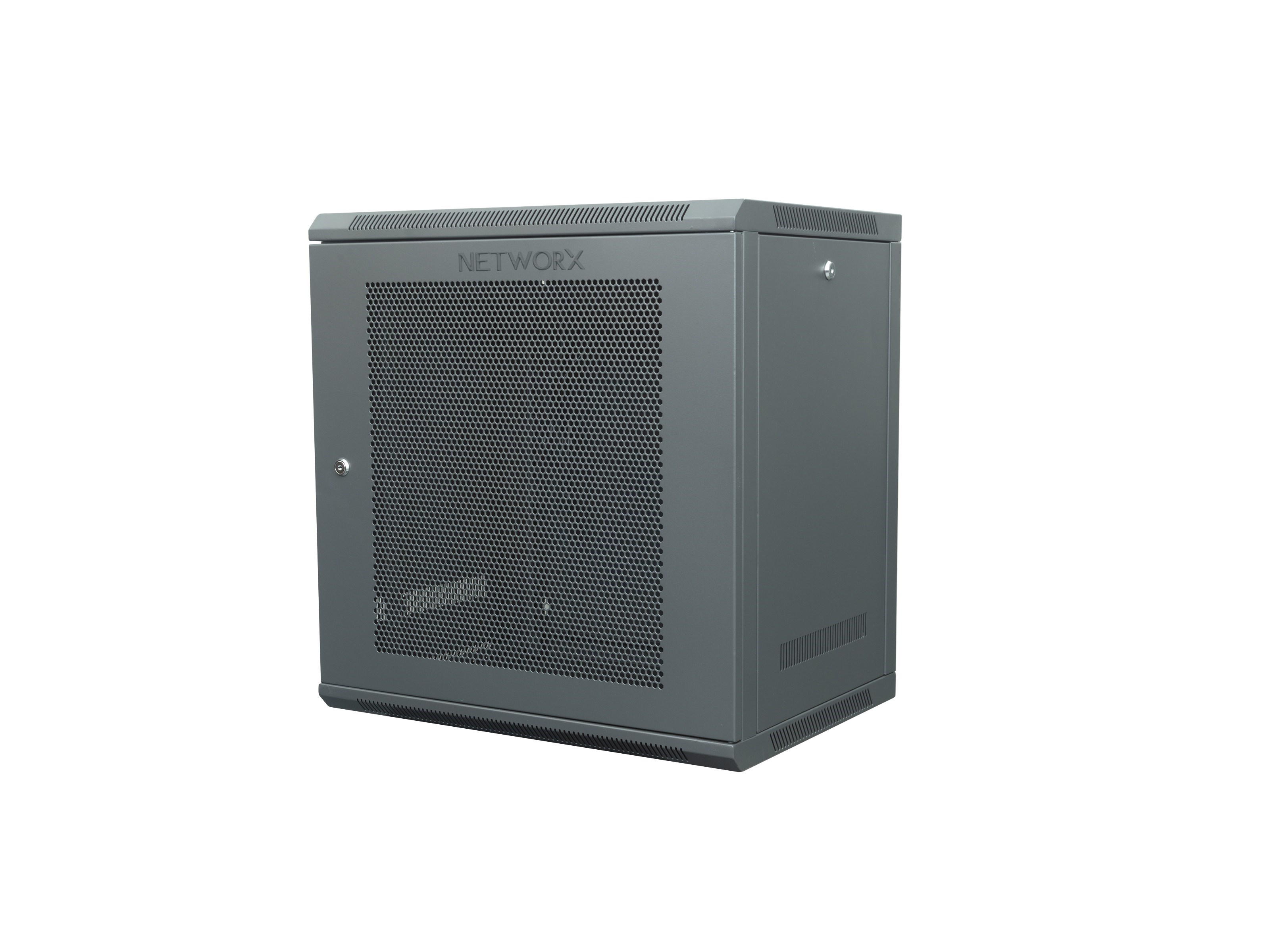

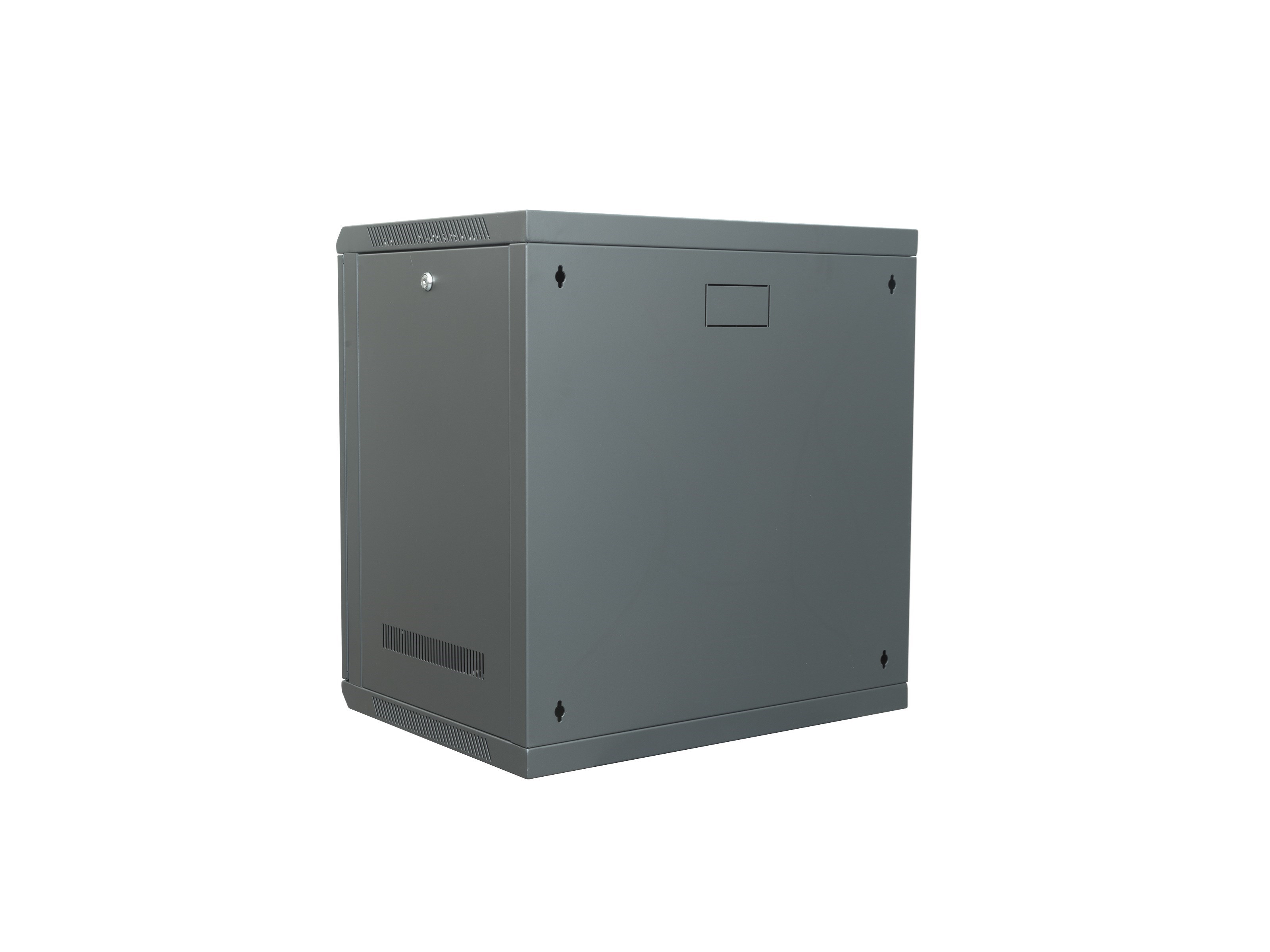

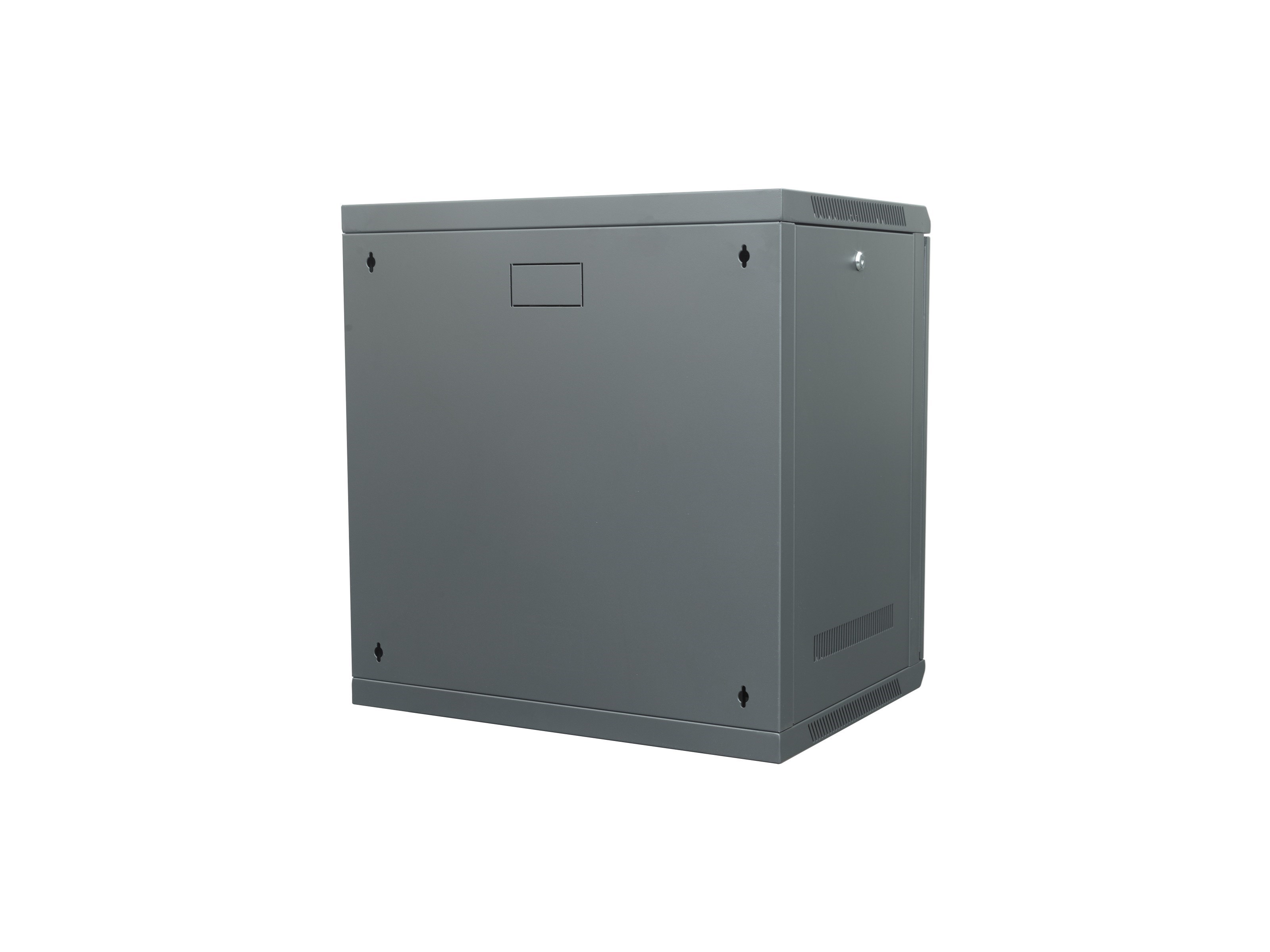

102 Series Wall Mount Network Cabinets - 18 Inches Deep
102 Series Wall Mount Network Cabinets provide secure, ventilated storage for standard 19-inch networking equipment, with rack sizes from 6U to 18U.
- P/N
- WMC-S102
Available configurations 4
- 12U Wall Mount Cabinet - 102 Series, 18 Inches Deep, Flat Packed
- 18U Wall Mount Cabinet - 102 Series, 18 Inches Deep, Flat Packed
- 6U Wall Mount Cabinet - 102 Series, 18 Inches Deep, Flat Packed
- 9U Wall Mount Cabinet - 102 Series, 18 Inches Deep, Flat Packed
| Configuration | SKU | GTIN | MSRP | Preinstalled 80CFM 110V Fans | Key Lock Set (2 Keys per Set) | RMU | Load Capacity | Rack Size Depth (Internal) | Internal Mounting Format | Rack Size Width (Internal) | Rack Height (Assembled) | Color | Delivery Style | Cage Nut Rails | Manufacturer | Hinged Swing Out Design | Vented Side Panels | Structure & Fabrication | Door Style | Locking Side Panels | Reinforced Door Frame |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12U Wall Mount Cabinet - 102 Series, 18 Inches Deep, Flat Packed | WMC-S102-12U | 00845425025487 | $263.39 | 1 | 1 Set | 12U | 130 lbs | 18" (14") | 19" | 24" (19") | 26.4 Inch | Black | Flat Packed | Front & Rear | Networx® | No | Removable | SPCC Cold-Rolled Steel Sheets | Steel Hexagonal Mesh | Yes | Yes |
| 18U Wall Mount Cabinet - 102 Series, 18 Inches Deep, Flat Packed | WMC-S102-18U | 845425025500 | $370.59 | 1 | 1 Set | 18U | 130 lbs | 18" (14") | 19" | 24" (19") | 39.6 Inch | Black | Flat Packed | Front & Rear | Networx® | No | Removable | SPCC Cold-Rolled Steel Sheets | Steel Hexagonal Mesh | Yes | Yes |
| 6U Wall Mount Cabinet - 102 Series, 18 Inches Deep, Flat Packed | WMC-S102-6U | 00845425025463 | $216.19 | 1 | 1 Set | 6U | 130 lbs | 18" (14") | 19" | 24" (19") | 13.2 Inch | Black | Flat Packed | Front & Rear | Networx® | No | Removable | SPCC Cold-Rolled Steel Sheets | Steel Hexagonal Mesh | Yes | Yes |
| 9U Wall Mount Cabinet - 102 Series, 18 Inches Deep, Flat Packed | WMC-S102-9U | 00845425025470 | $235.99 | 1 | 1 Set | 9U | 130 lbs | 18" (14") | 19" | 24" (19") | 19.8 Inch | Black | Flat Packed | Front & Rear | Networx® | No | Removable | SPCC Cold-Rolled Steel Sheets | Steel Hexagonal Mesh | Yes | Yes |
About this family
Networx® 102 Series Wall Mount Network Cabinets are designed to organize and protect standard 19-inch networking equipment in compact installations. Constructed from SPCC cold-rolled steel, each 18-inch-deep cabinet features adjustable mounting rails, removable vented side panels, a reversible tempered glass front door, and an included 120mm cooling fan. Lockable front and side panels help secure equipment, while top, bottom, and rear cable knockouts simplify routing. Available in 6U, 9U, 12U, 15U, and 18U sizes, these flat-packed cabinets support up to 130 pounds when properly secured.
- Available in 6U through 18U sizes
- 18-inch-deep cabinet design
- Fits standard 19-inch equipment
- Includes a 120mm cooling fan
- Supports up to 130 lbs
- Helps protect network equipment
- Provides easy equipment access
- Improves airflow around hardware
- Simplifies cable management
- Saves valuable floor space
