5 configurations in this family

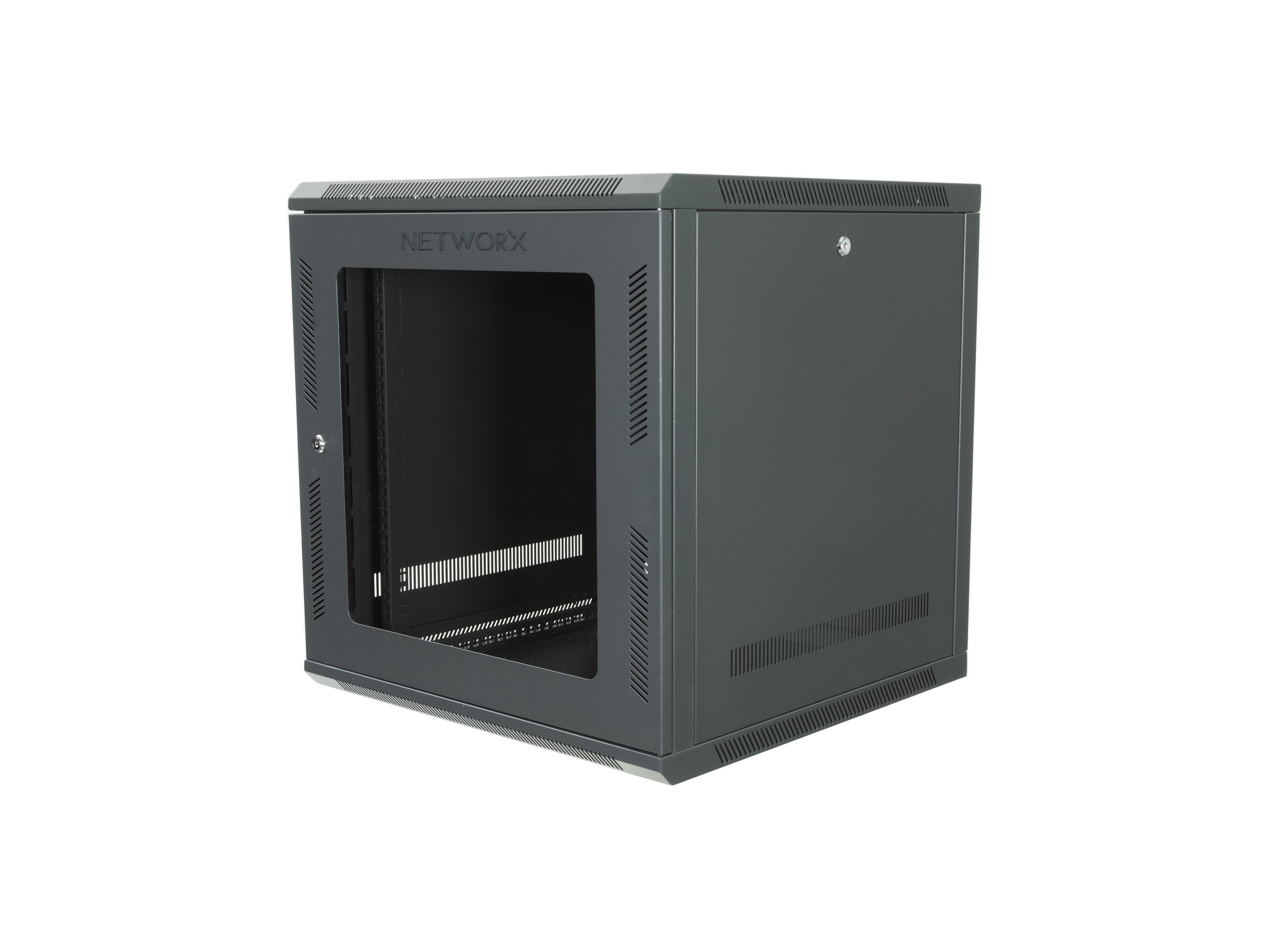

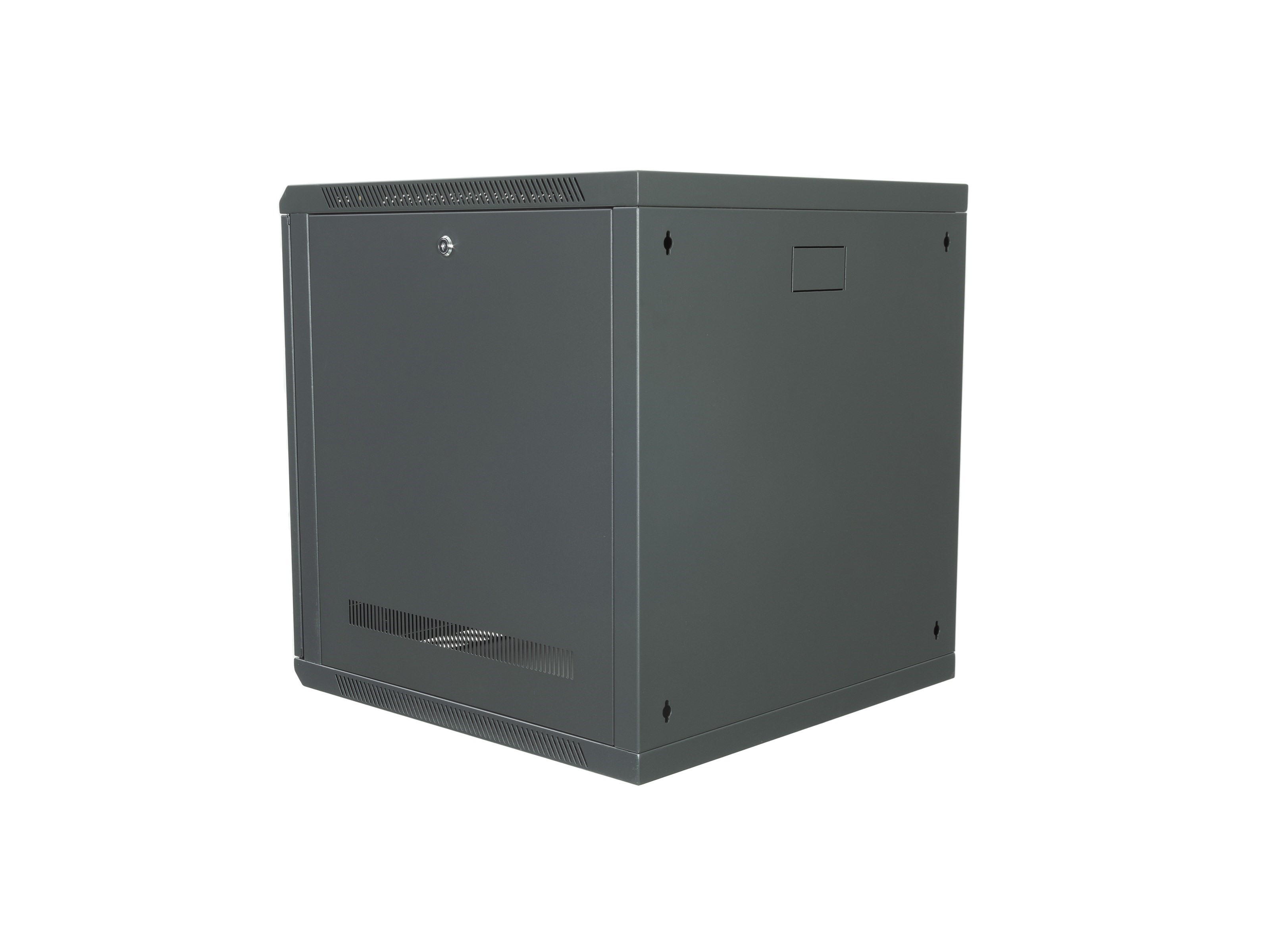

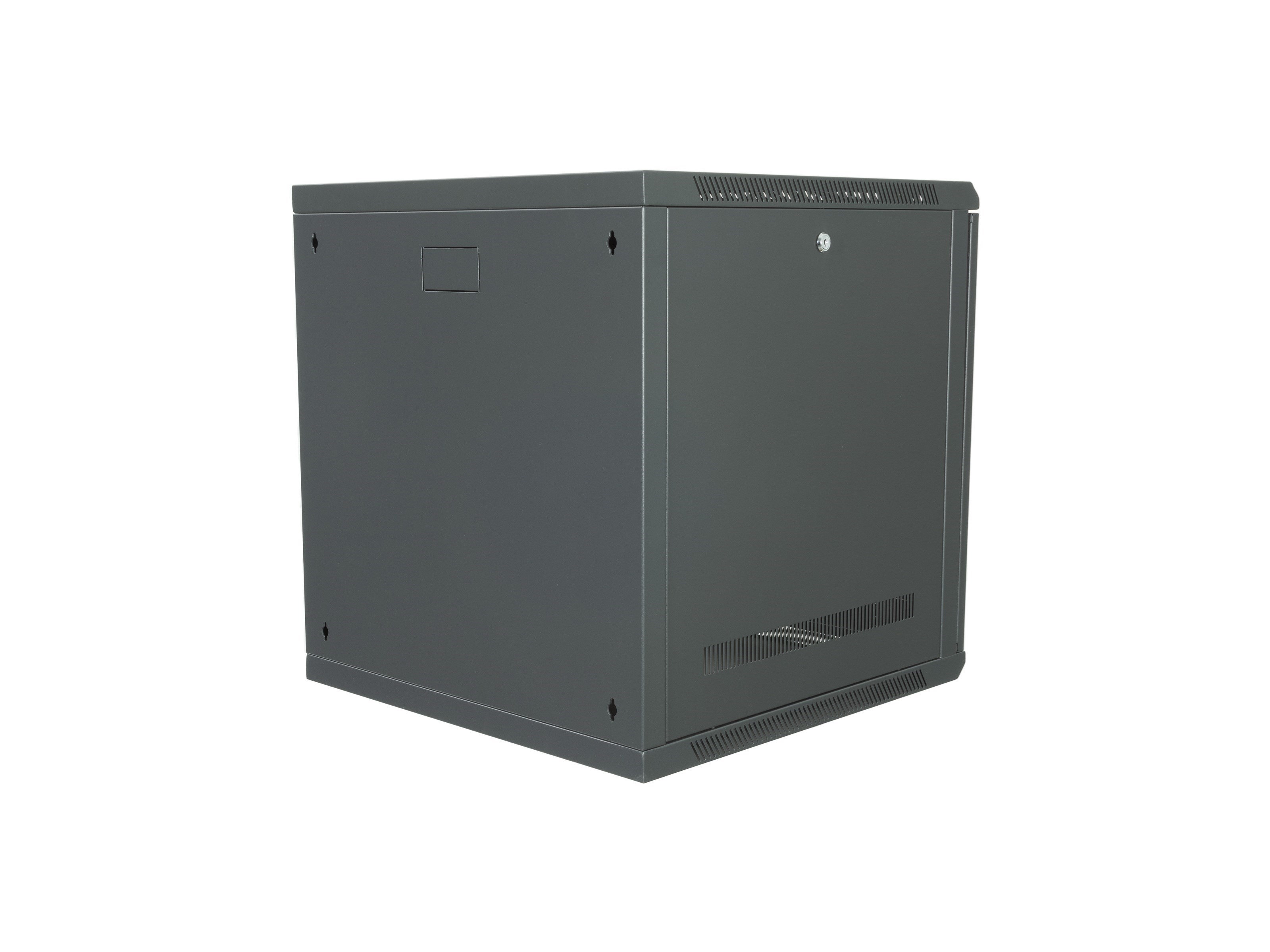

201 Series 24-Inch Deep Wall Mount Cabinets
24-inch deep wall mount cabinets available in 6U, 9U, 12U, 15U, and 18U sizes for organizing and protecting compatible rack-mounted network and telecom equipment.
- P/N
- WMC-S201
Available configurations 5
- 12U Wall Mount Cabinet - 201 Series, 24 Inches Deep, Flat Packed
- 15U Wall Mount Cabinet - 201 Series, 24 Inches Deep, Flat Packed
- 18U Wall Mount Cabinet - 201 Series, 24 Inches Deep, Flat Packed
- 6U Wall Mount Cabinet - 201 Series, 24 Inches Deep, Flat Packed
- 9U Wall Mount Cabinet - 201 Series, 24 Inches Deep, Flat Packed
| Configuration | SKU | GTIN | MSRP | Cage Nut Rails | Color | Internal Mounting Format | Key Lock Set (2 Keys per Set) | Load Capacity | Locking Side Panels | Manufacturer | Preinstalled 80CFM 110V Fans | Rack Size Depth (Internal) | Rack Size Width (Internal) | Reinforced Door Frame | Door Style | RMU | Structure & Fabrication | Vented Side Panels | Hinged Swing Out Design | Rack Height (Assembled) | Delivery Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12U Wall Mount Cabinet - 201 Series, 24 Inches Deep, Flat Packed | WMC-S201-12U | 00845425023148 | $302.19 | Front & Rear | Black | 19" | 1 Set | 130 lbs | Yes | Networx® | 1 | 24" (20") | 24" (19") | Yes | Tempered Glass | 12U | SPCC Cold-Rolled Steel Sheets | Removable | No | 26.4 Inch | Flat Packed |
| 15U Wall Mount Cabinet - 201 Series, 24 Inches Deep, Flat Packed | WMC-S201-15U | 00845425023155 | $383.99 | Front & Rear | Black | 19" | 1 Set | 130 lbs | Yes | Networx® | 1 | 24" (20") | 24" (19") | Yes | Tempered Glass | 15U | SPCC Cold-Rolled Steel Sheets | Removable | No | 33 Inch | Flat Packed |
| 18U Wall Mount Cabinet - 201 Series, 24 Inches Deep, Flat Packed | WMC-S201-18U | 00845425023162 | $421.99 | Front & Rear | Black | 19" | 1 Set | 130 lbs | Yes | Networx® | 1 | 24" (20") | 24" (19") | Yes | Tempered Glass | 18U | SPCC Cold-Rolled Steel Sheets | Removable | No | 39.6 Inch | Flat Packed |
| 6U Wall Mount Cabinet - 201 Series, 24 Inches Deep, Flat Packed | WMC-S201-6U | 00845425023124 | $246.59 | Front & Rear | Black | 19" | 1 Set | 130 lbs | Yes | Networx® | 1 | 24" (20") | 24" (19") | Yes | Tempered Glass | 6U | SPCC Cold-Rolled Steel Sheets | Removable | No | 13.2 Inch | Flat Packed |
| 9U Wall Mount Cabinet - 201 Series, 24 Inches Deep, Flat Packed | WMC-S201-9U | 00845425023131 | $268.69 | Front & Rear | Black | 19" | 1 Set | 130 lbs | Yes | Networx® | 1 | 24" (20") | 24" (19") | Yes | Tempered Glass | 9U | SPCC Cold-Rolled Steel Sheets | Removable | No | 19.8 Inch | Flat Packed |
About this family
These 201 Series wall mount cabinets provide an enclosed solution for organizing compatible rack-mounted network, telecom, and other equipment while helping conserve floor space. Each cabinet features a 24-inch depth and is available in multiple rack unit sizes, giving you more room for deeper equipment while allowing you to choose the capacity that best fits your installation.
- 24-inch deep wall mount cabinet design
- Available in 6U, 9U, 12U, 15U, and 18U sizes
- Designed for compatible rack-mounted equipment
- Additional depth supports equipment that requires more mounting space
- Multiple rack unit options support different equipment capacities
- Wall-mounted design helps conserve valuable floor space
- Helps organize and protect installed network and telecom equipment
- Suitable for network, telecom, and structured cabling installations
- Multiple size options make it easier to match cabinet capacity to the application
