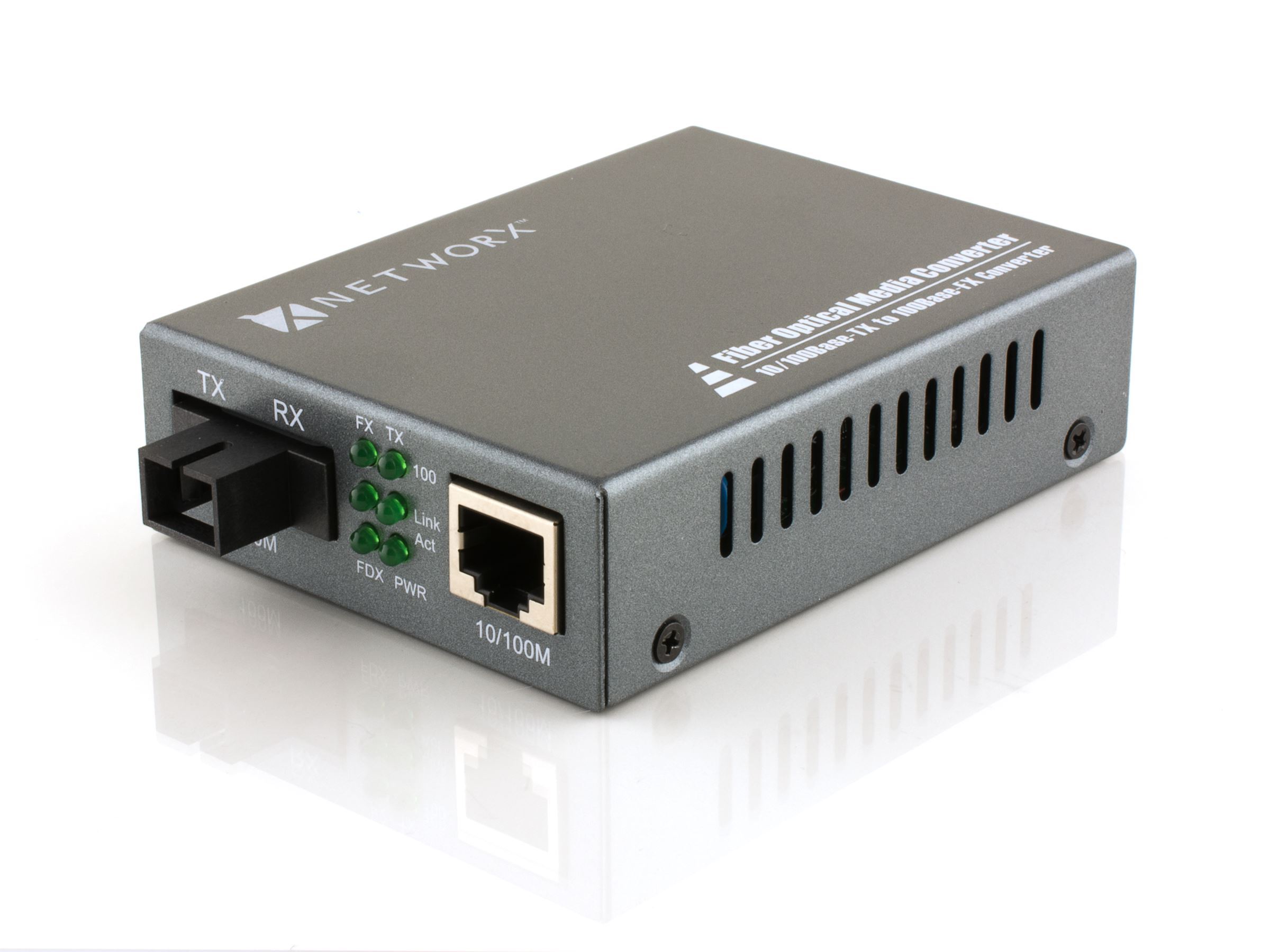

Fiber Media Converter - 100Base-BX, WDM SC, 30km
This Fiber Transceiver / Media Converter is designed to convert data signal between 10/100Base-T/TX and 100Base-BX Fast Ethernet. Maximum transmission distance 30 kilometers over Simplex singlemode fiber. Single SC Connector.
The Media Converter complies with IEEE 802.3z, IEEE 802.3AB Standards. It is designed to convert data signal between 10/100Base-T/TX and 100Base-BX Gigabit Ethernet. It supports 10/100Base-T and 100Base-BX applications.

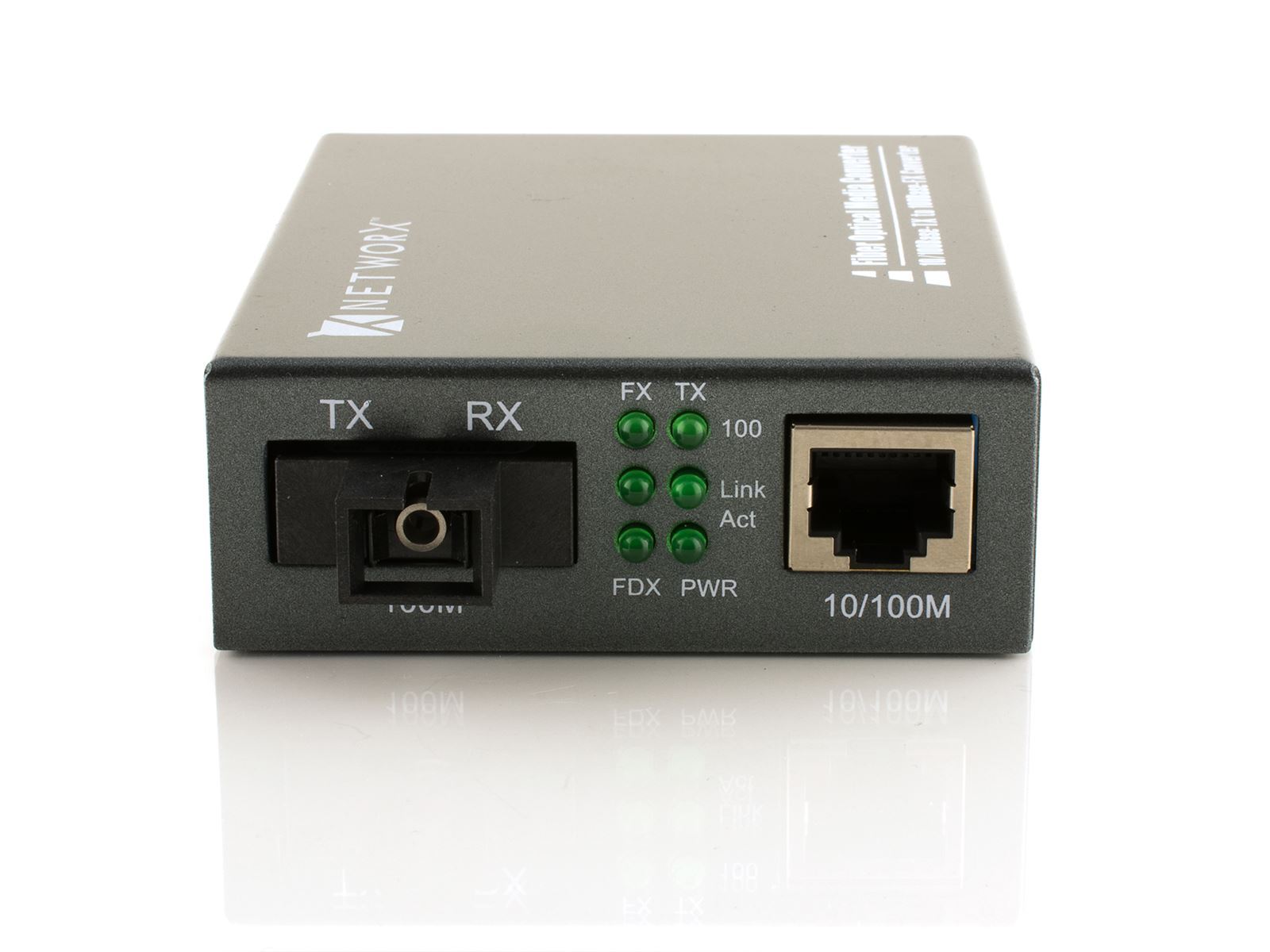

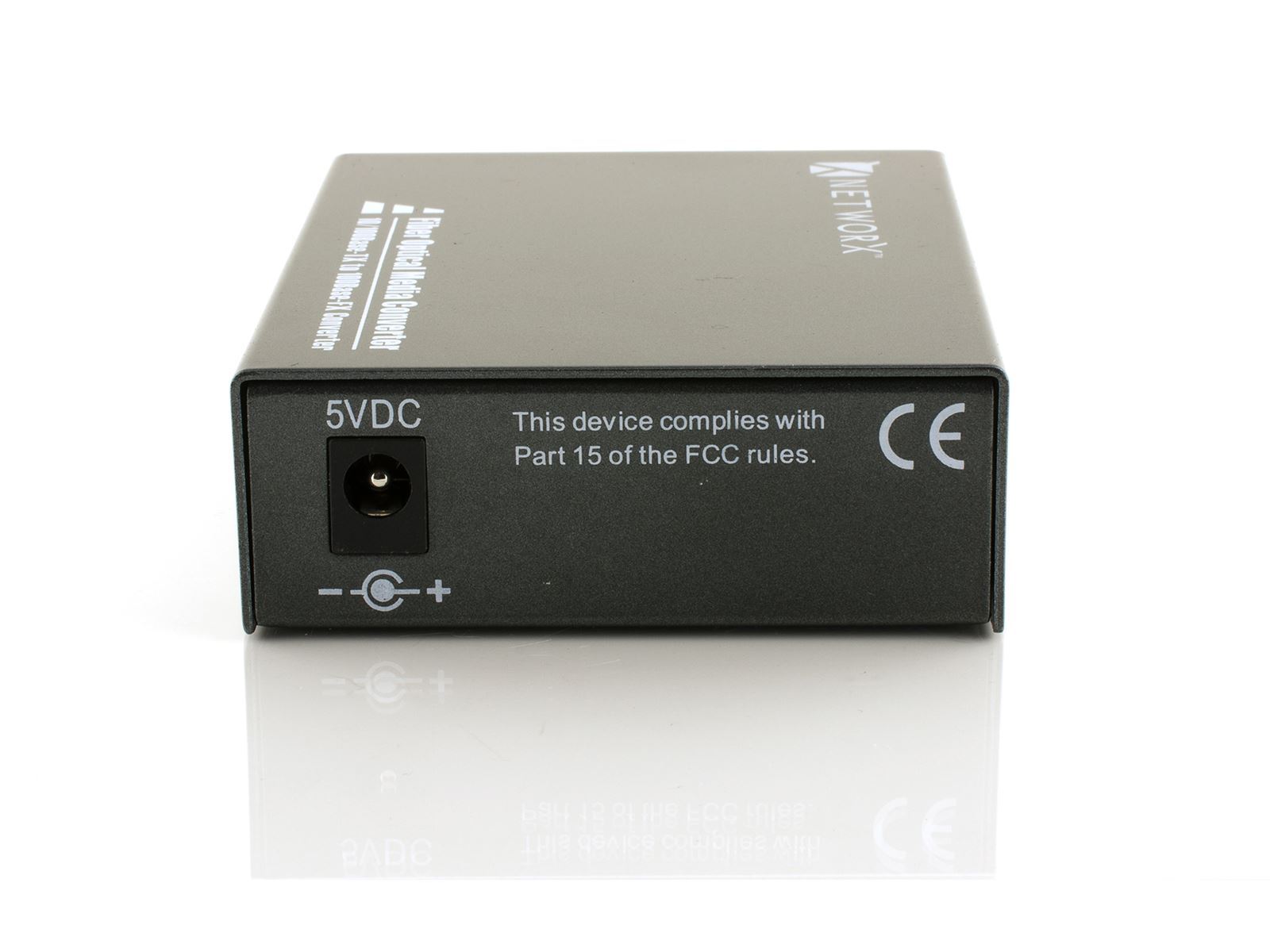

The Converter is equipped with 1 single fiber optic connector for transmitting at 1310nm and receiving at 1550nm, and one RJ-45 Jack and one external power supply receptacle. Six LED indicators are built-in for easy diagnosing and monitoring the status of power, Unshielded Twisted Paired (UTP) Link, UTP Activity, Fiber Link, Fiber Activity, Full duplex and data rates. It can be configured automatically for Full Duplex or Half Duplex operation.
It is compact, cost-effective, low dissipative, high reliable and stable. It can be used in standalone applications, or Rack-Mounted applications where multiple media converters can be inserted into a rack-mount chassis (up to 16 units), and allowing all the converters to be powered by a single internal power supply.
Note: This converter should be paired with FT-100SM30-1SC-1550T
- 10/100 Mbps Auto-Negotiation
- 1310 nm Transmit / 1550 nm Receive
- Supports 9/125 Micron Singlemode Fiber
- Half- and Full-Duplex UTP Modes
- Maximum Transmission Distance: 20 km
- Extends Ethernet Connections Across Long Distances
- Uses Single-Fiber Bidirectional Transmission
- Supports Reliable 100Base-BX Applications
- Simplifies Standalone or Rack-Mounted Installations
- Pairs with the Matching Opposite-Wavelength Converter
