2 configurations in this family

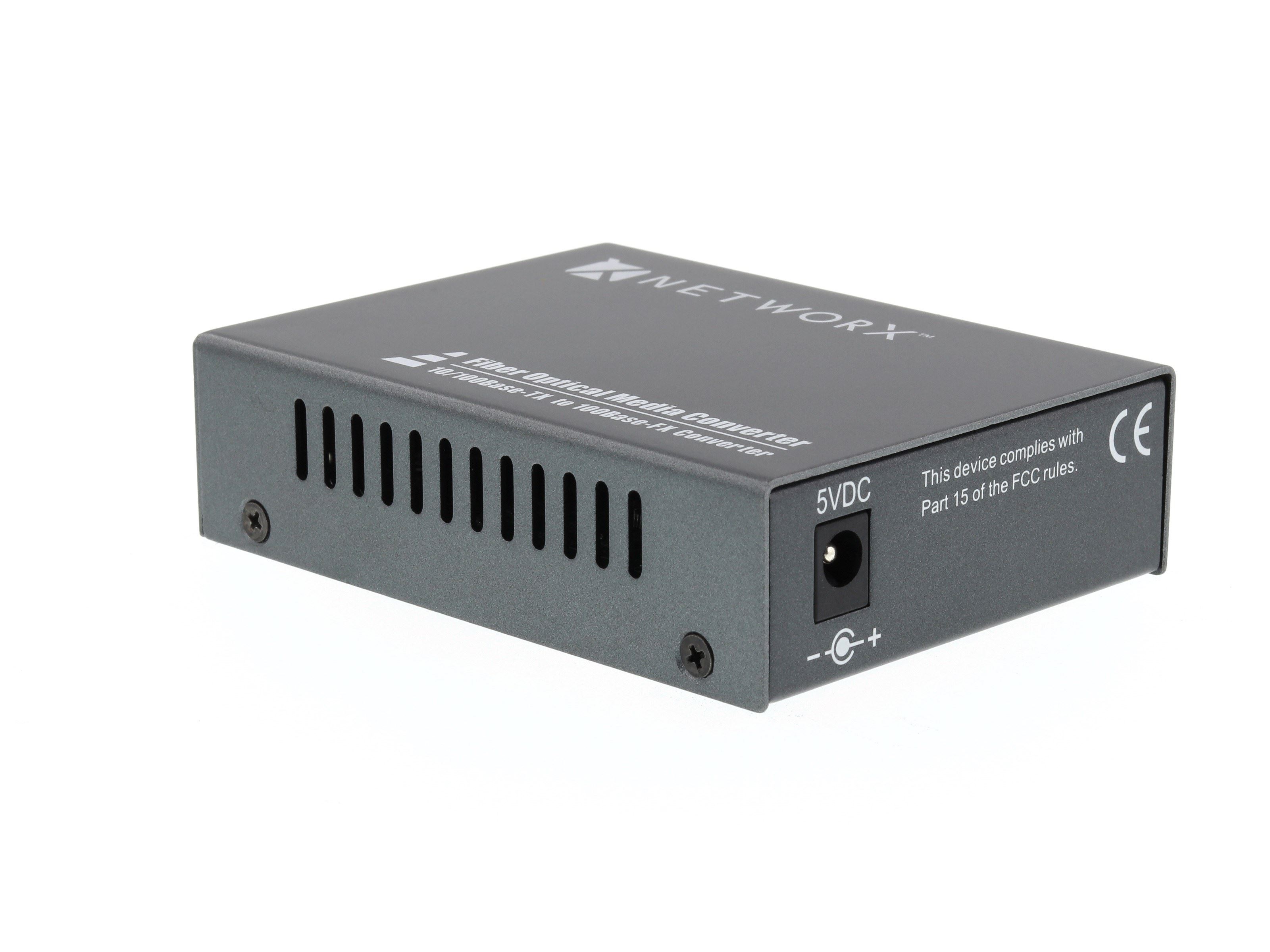

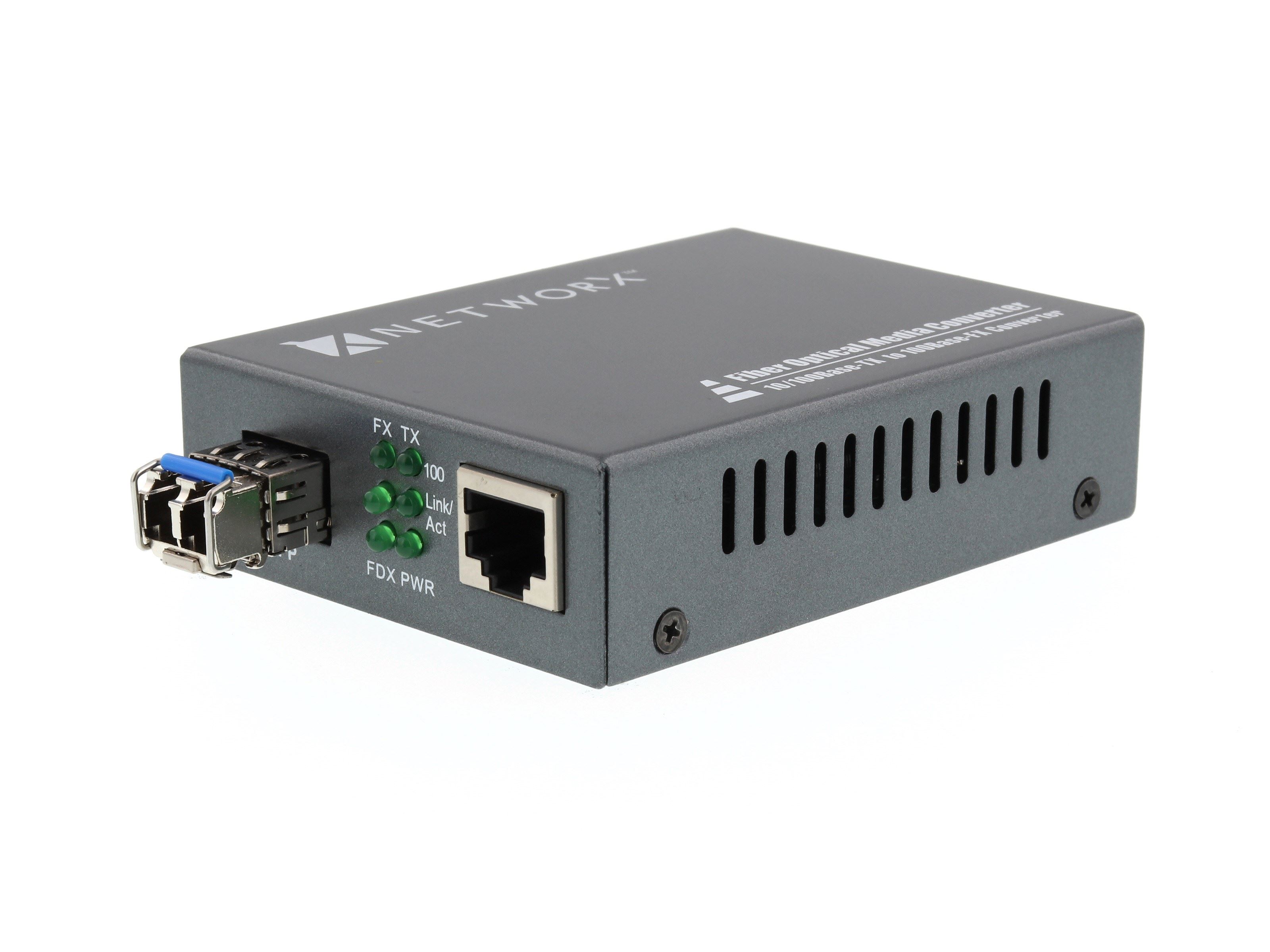

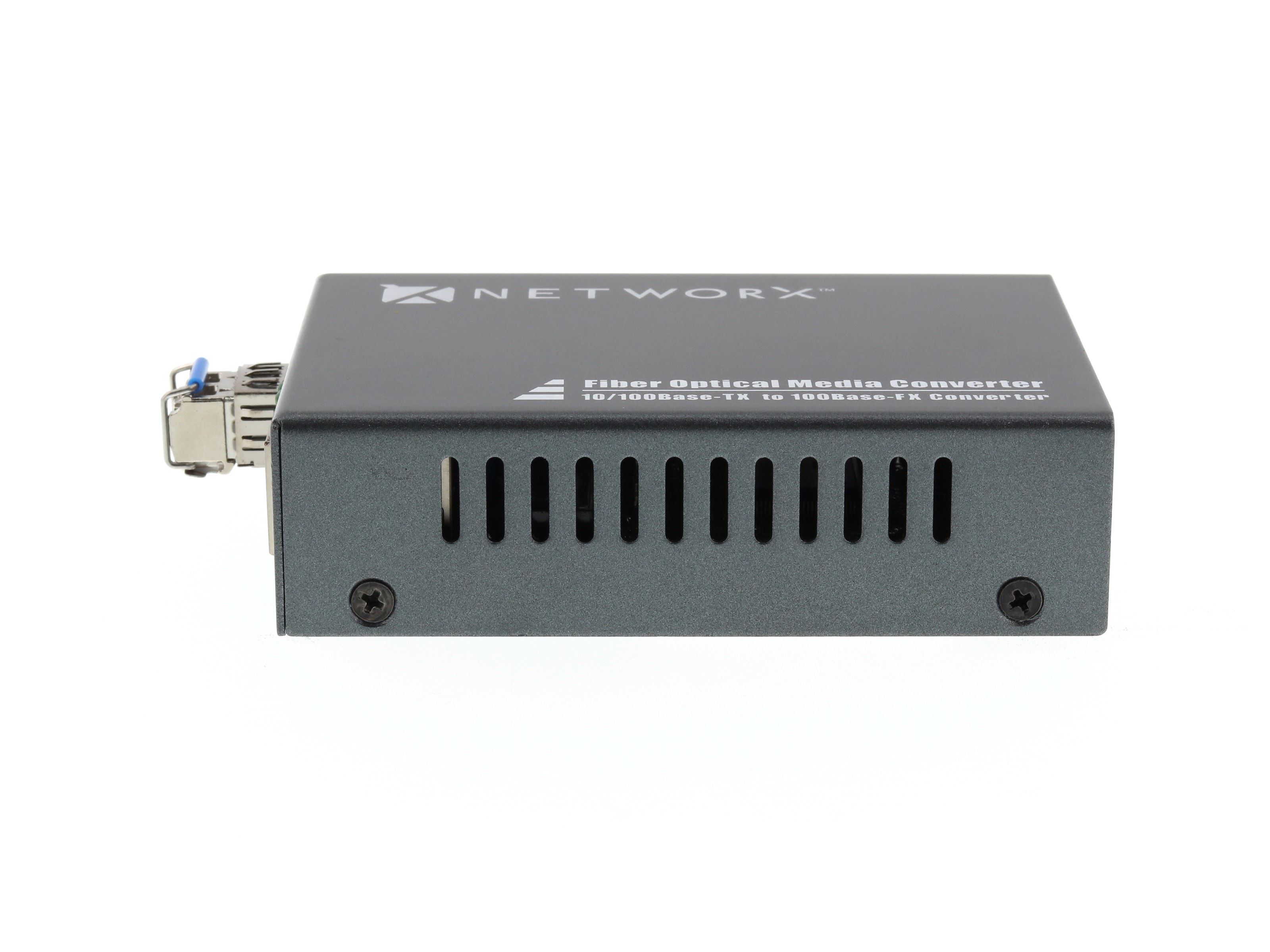

Fiber Media Converter - 100Base-FX, Multimode, 2km, 1310nm
This Fiber Transceiver / Media Converter converts data signal between 10/100Base-T/TX and 100Base-FX Fast Ethernet. Supports 50/125, 62.5/125, or 100/140 micron multimode. Optical wavelength 1310nm, Maximum distance up to 2km.
- P/N
- FT-100MM
Available configurations 2
- Fiber Media Converter - 100Base-FX, SC Multimode, 2km, 1310nm
- Fiber Media Converter - 100Base-FX, ST Multimode, 2km, 1310nm
| Configuration | SKU | GTIN | MSRP | Color | Connector | Connector A | Connector B | Fiber Type | Maximum Data Transfer Rate | Maximum Transfer Distance | Wavelength | Manufacturer | Input Voltage | Input Current | Output Voltage | Output Current | Auto MDI/MDIX | Warranty | RoHS Compliant |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Fiber Media Converter - 100Base-FX, SC Multimode, 2km, 1310nm | FT-100MM-SC | 00845425008244 | $73.29 | Gray | SC, RJ45 | SC Female | RJ45 Female | Multimode | 10/100 Mbps | 2km | 1310nm | Networx® | 85 - 240V AC | 0.28 A | 5V DC | 1 A | Yes | 3 Year Warranty | Yes |
| Fiber Media Converter - 100Base-FX, ST Multimode, 2km, 1310nm | FT-100MM-ST | 00845425008268 | $84.29 | Gray | ST, RJ45 | ST Female | RJ45 Female | Multimode | 10/100 Mbps | 2km | 1310nm | Networx® | 85 - 240V AC | 0.28 A | 5V DC | 1 A | Yes | 3 Year Warranty | Yes |
About this family
This product supports IEEE802.3UI 100Base-Tx/Fx protocol, as well as full duplex and half duplex mode. The transmission media adopts Cat5 twisted-pair with typical length of 100 meter. It features the function of automatically identifying the through line and cross wire (10/100M).
In conformity to IEEE 802.3 10 Base-T standard and IEEE 802.3u 100 Base-Tx/Fx. Max. 2M buffer memory built in chip. Back pressure flow control for full duplex IEEE802.3 X and half duplex. Automatic identification of MDI/MDI-X cross line. High performance 1.4Gpbs memory bandwidth. In conformity to safety code of FCC and 15 CLASS A and CE MARK.
- 10/100 Mbps Ethernet Conversion
- 1310 nm Multimode Fiber Operation
- Supports 50/125, 62.5/125, and 100/140 Micron Fiber
- Full- and Half-Duplex Operation
- Maximum Transmission Distance: 2 km
- Extends Ethernet Connections Across Fiber Links
- Automatically Detects Straight-Through and Crossover Cables
- Supports Reliable 10Base-T and 100Base-TX/FX Networks
- Delivers Stable Data Transfer with Flow Control
- Simplifies Copper-to-Fiber Network Integration
