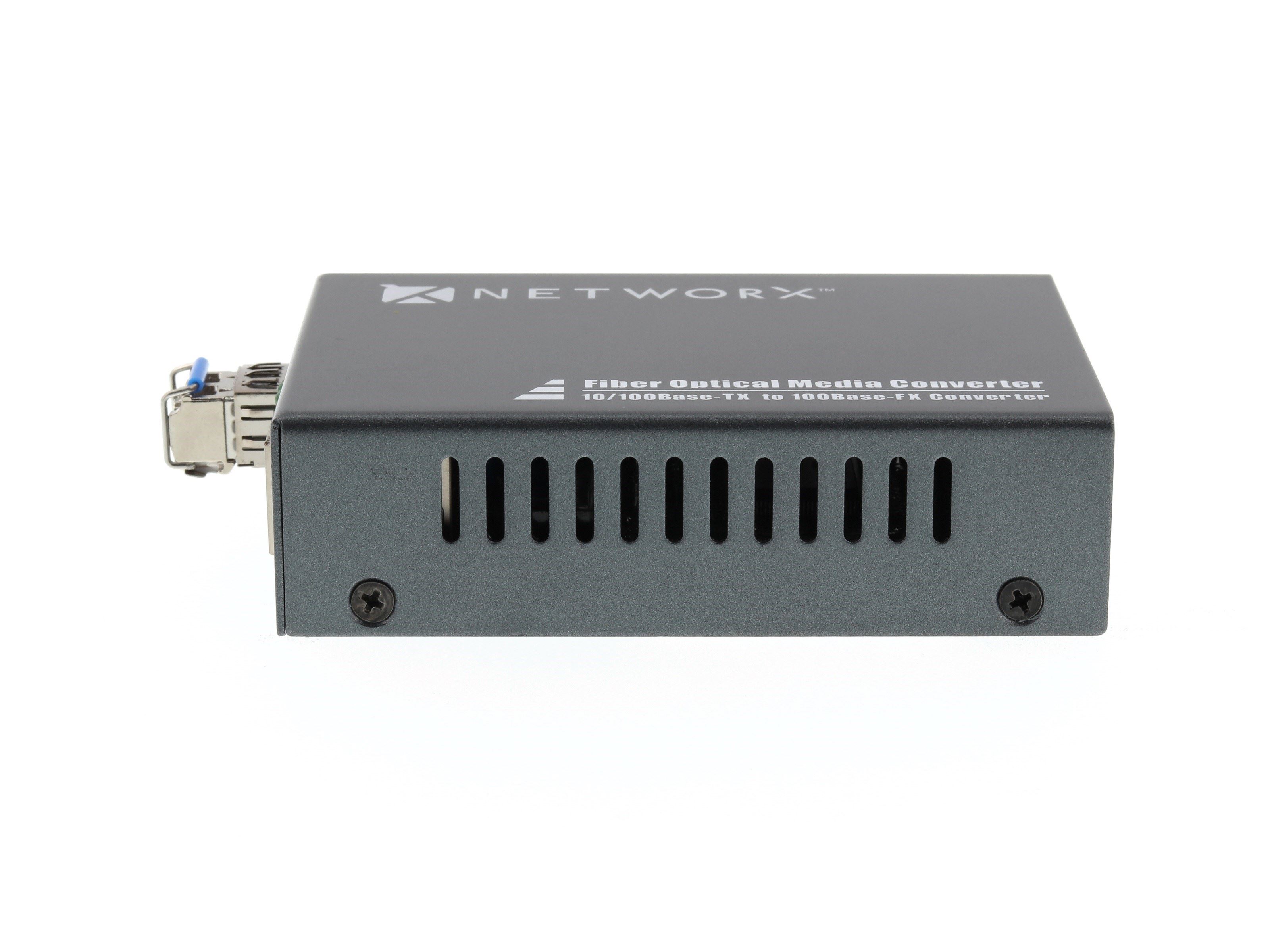

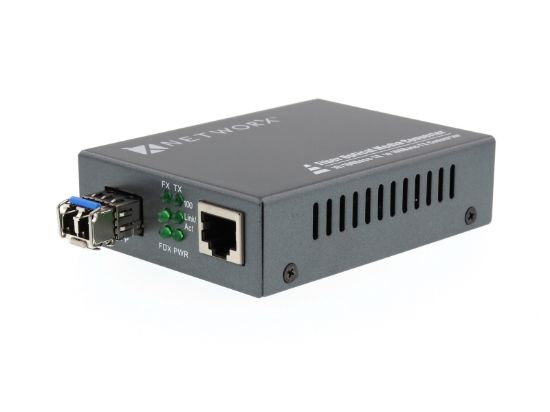

Fiber Media Converter - 100Base-FX, Singlemode, 20km, 1310nm
- P/N
- FT-100SM20
Available configurations 2
- Fiber Media Converter - 100Base-FX, SC Singlemode, 20km, 1310nm
- Fiber Media Converter - 100Base-FX, ST Singlemode, 20km, 1310nm
| Configuration | SKU | GTIN | MSRP | Color | Connector | Connector A | Connector B | Fiber Type | Maximum Data Transfer Rate | Maximum Transfer Distance | Wavelength | Manufacturer | Input Voltage | Input Current | Output Voltage | Output Current | Auto MDI/MDIX | Warranty | RoHS Compliant |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Fiber Media Converter - 100Base-FX, SC Singlemode, 20km, 1310nm | FT-100SM20-SC | 00845425008312 | $76.69 | Gray | SC, RJ45 | SC Female | RJ45 Female | Singlemode | 10/100 Mbps | 20km | 1310nm | Networx® | 85 - 240V AC | 0.28 A | 5V DC | 1 A | Yes | 3 Year Warranty | Yes |
| Fiber Media Converter - 100Base-FX, ST Singlemode, 20km, 1310nm | FT-100SM20-ST | 00845425008329 | $76.69 | Gray | ST, RJ45 | ST Female | RJ45 Female | Singlemode | 10/100 Mbps | 20km | 1310nm | Networx® | 85 - 240V AC | 0.28 A | 5V DC | 1 A | Yes | 3 Year Warranty | Yes |
About this family
The Media Converter complies with IEEE 802.3z, IEEE 802.3AB Standards. It is designed to convert data signal between 10/100Base-T and 100Base-FX Fast Ethernet. It supports 10/100Base-T and 100Base-FX applications.

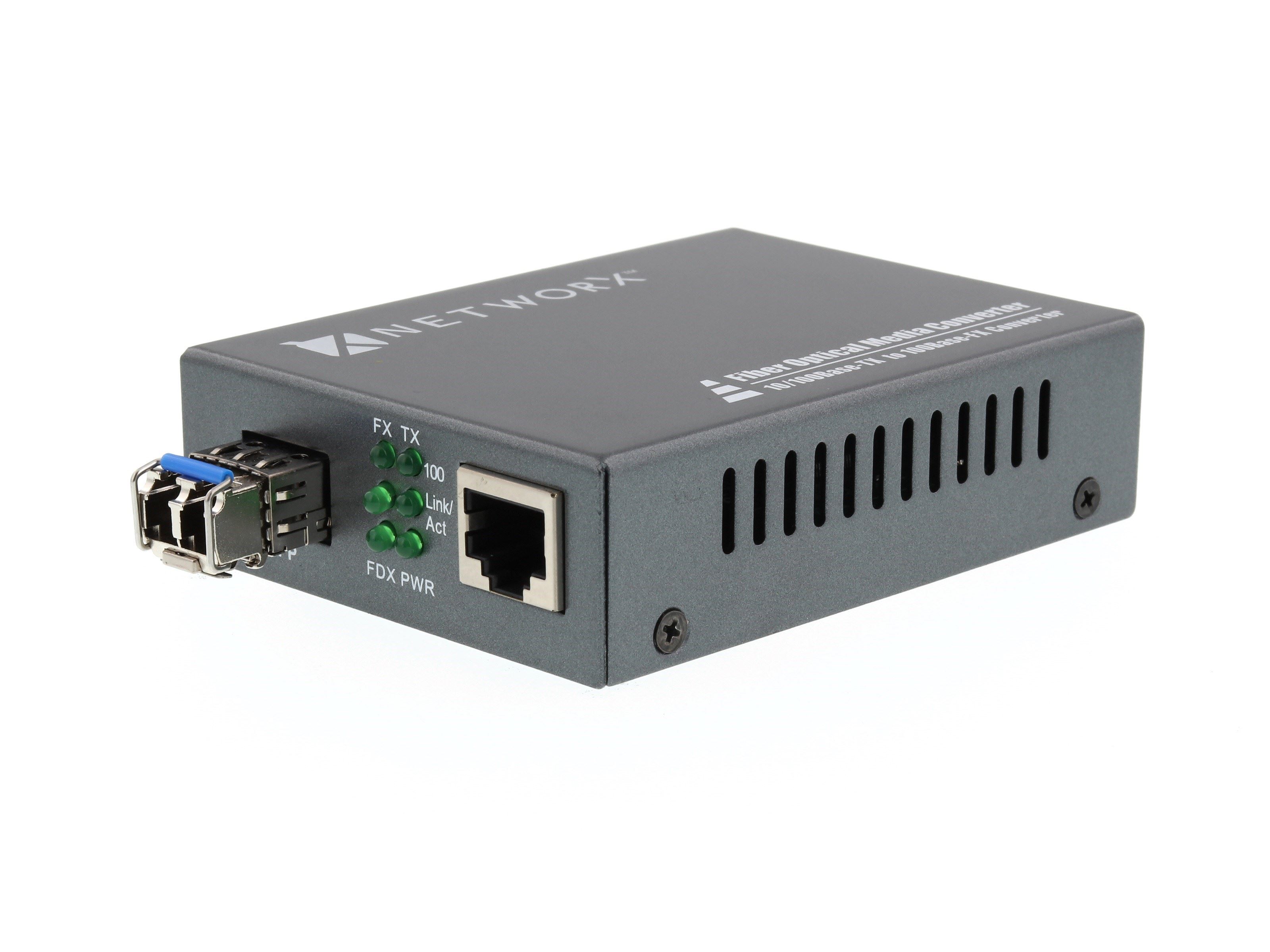

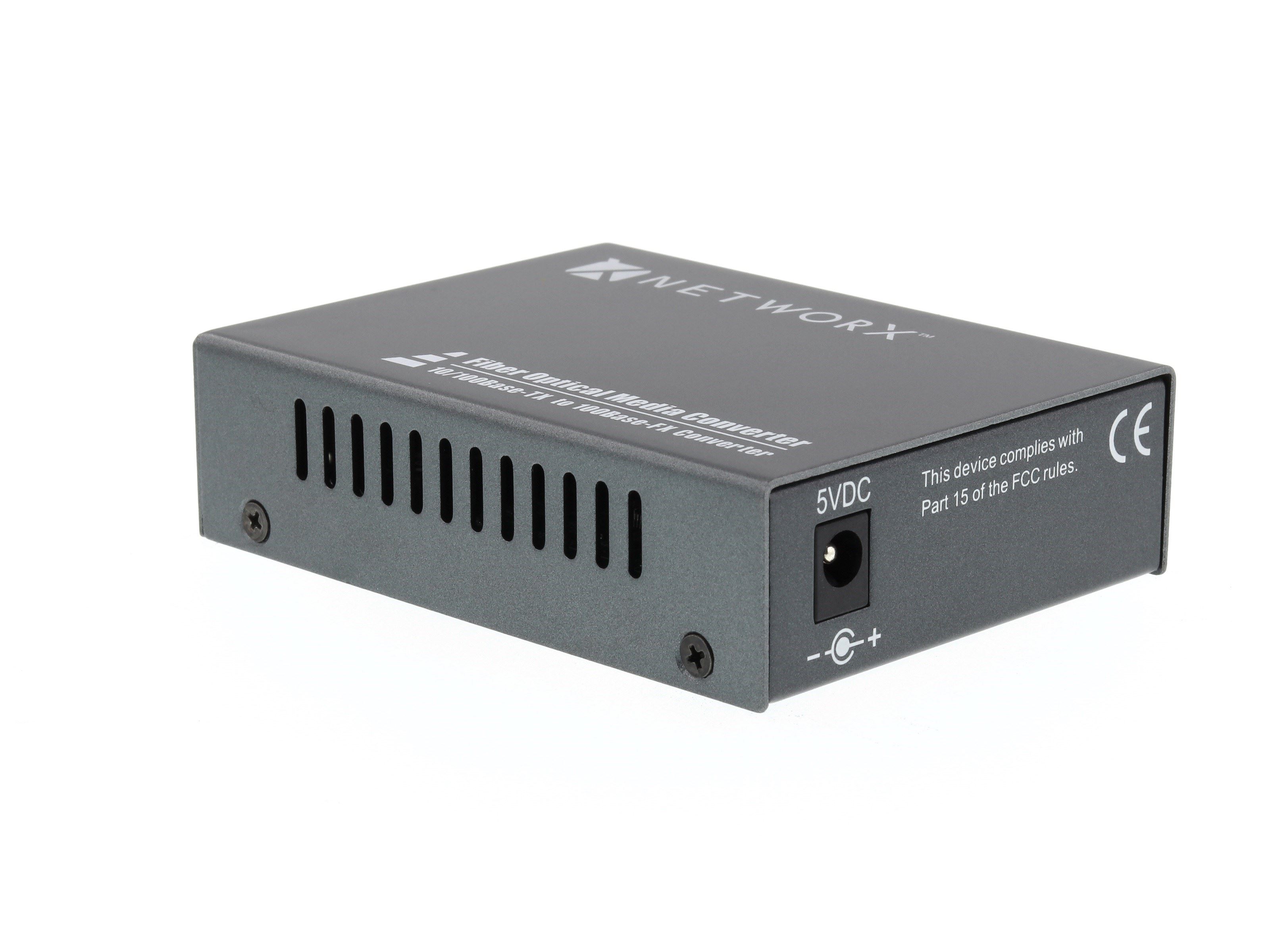

The Converter is equipped with 2 single fiber optic connectors (One for transmitting-TX and another for receiving-RX) and one RJ-45 Jack and one external pwer supply receptacle. Six LED indicators are built-in for easy diagnosing and monitoring the status of power, Unshielded Twisted Paired (UTP) Link, UTP Activity, Fiber Link, Fiber Activity, Full duplex and data rates. It can be configured automatically for Full Duplex or Half Duplex operation.
It is compact, cost-effective, low dissipative, high reliable and stable. It can be used in standalone applications, or Rack-Mounted applications where multiple media converters can be inserted into a rack-mount chassis (up to 16 units), and allowing all the converters to be powered by a single internal power supply.
Note: Mode Conditioning cable recommended if running over legacy Multimode Backbone
- 10/100 Mbps Auto-Negotiation
- 1310 nm Singlemode Fiber Operation
- Supports 9/125 Micron Singlemode Fiber
- Half- and Full-Duplex UTP Modes
- Maximum Transmission Distance: 20 km
- Extends Ethernet Connections Across Long Distances
- Converts Copper Ethernet to Fiber Connectivity
- Supports Reliable 100Base-FX Applications
- Delivers Stable Long-Distance Data Transmission
- Simplifies Standalone or Rack-Mounted Installations
