2 configurations in this family

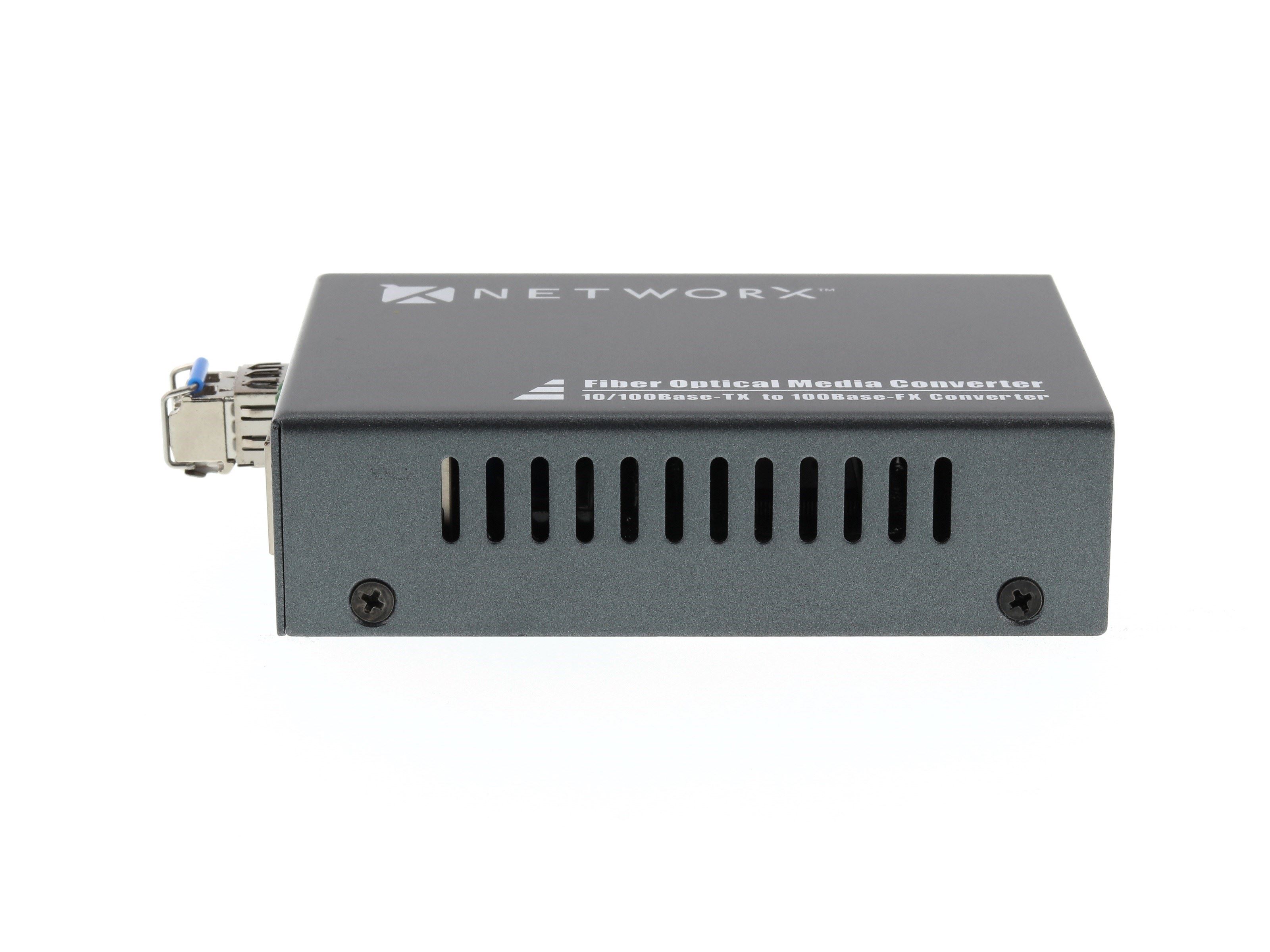

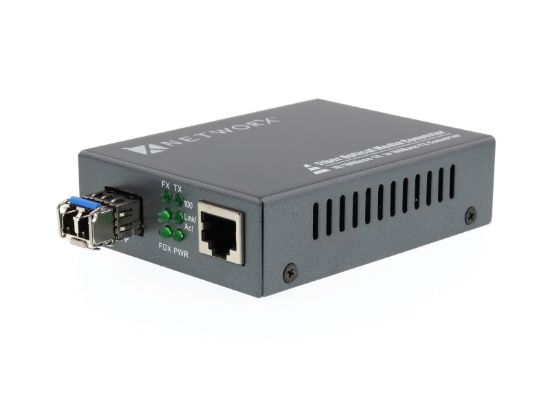

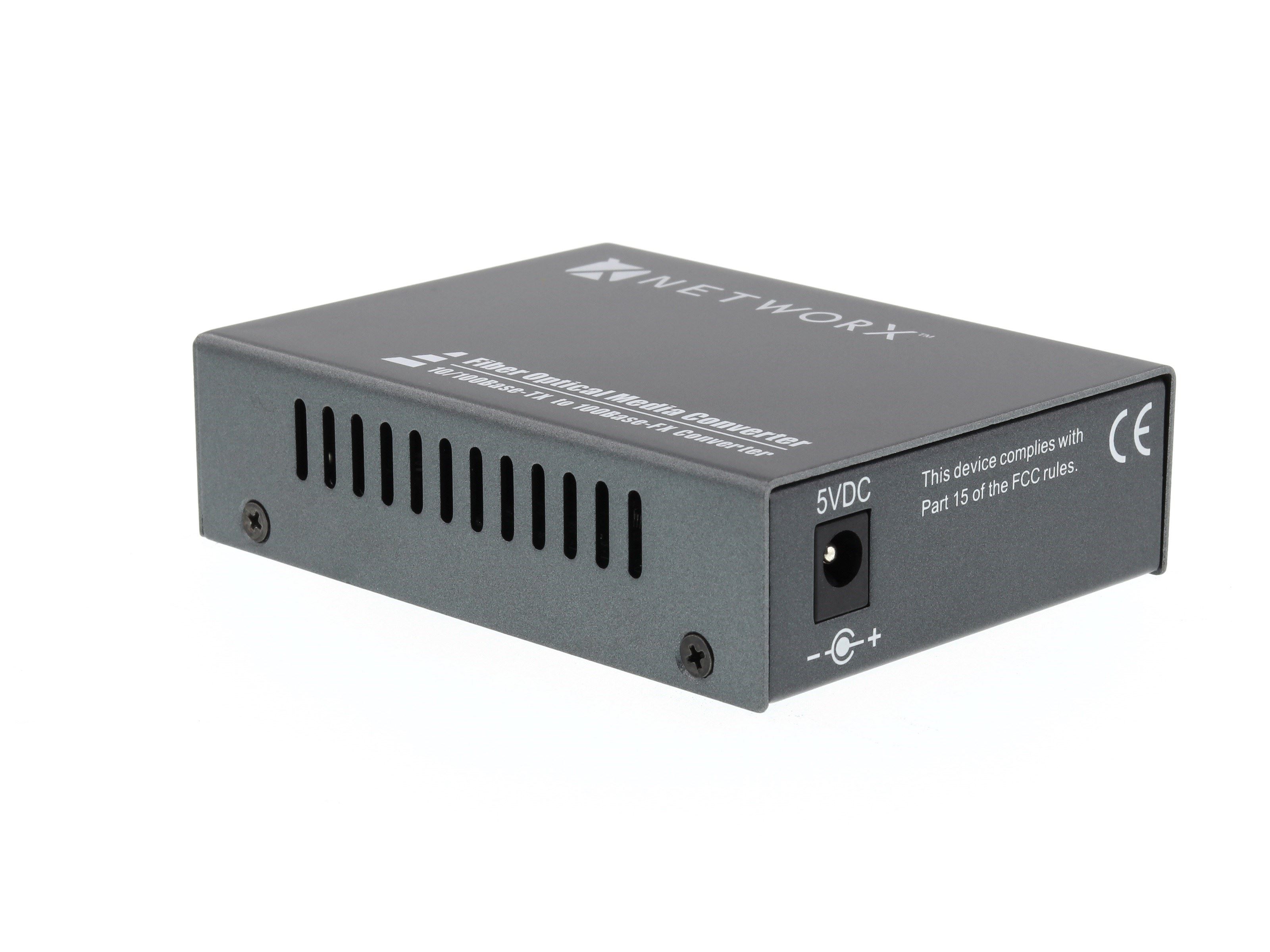

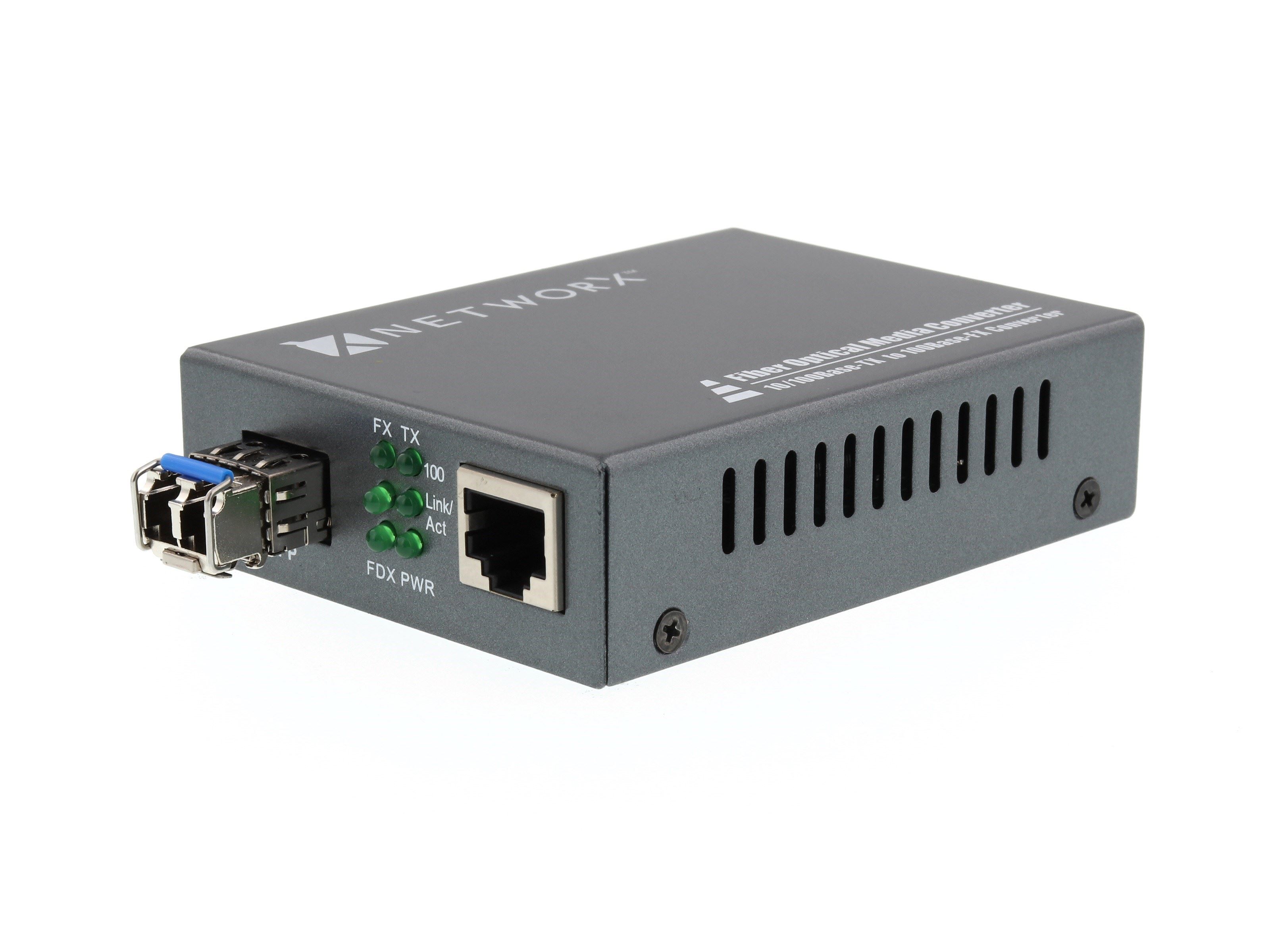

Fiber Media Converter - 100Base-SX, Multimode, 2km, 850nm
This Fiber Transceiver / Media Converter converts data signal between 10/100Base-T/TX and 100Base-SX/FL Fast Ethernet. Supports 50/125, 62.5/125, or 100/140 micron multimode . Optical wavelength 850nm, Maximum distance up to 2km.
- P/N
- FT-100MM-850
Available configurations 2
- Fiber Media Converter - 100Base-SX, SC Multimode, 550m, 850nm
- Fiber Media Converter - 100Base-SX, ST Multimode, 550m, 850nm
| Configuration | SKU | GTIN | MSRP | Color | Connector | Connector A | Connector B | Fiber Type | Maximum Data Transfer Rate | Wavelength | Manufacturer | Input Voltage | Input Current | Output Voltage | Output Current | Auto MDI/MDIX | Warranty | RoHS Compliant | Maximum Transfer Distance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Fiber Media Converter - 100Base-SX, SC Multimode, 550m, 850nm | FT-100MM-SC850 | 00845425008251 | $73.29 | Gray | SC, RJ45 | SC Female | RJ45 Female | Multimode | 10/100 Mbps | 850nm | Networx® | 85 - 240V AC | 0.28 A | 5V DC | 1 A | Yes | 3 Year Warranty | Yes | 550m |
| Fiber Media Converter - 100Base-SX, ST Multimode, 550m, 850nm | FT-100MM-ST850 | 00845425008275 | $84.29 | Gray | ST, RJ45 | ST Female | RJ45 Female | Multimode | 10/100 Mbps | 850nm | Networx® | 85 - 240V AC | 0.28 A | 5V DC | 1 A | Yes | 3 Year Warranty | Yes | 550m |
About this family
This product supports IEEE802.3UI 100Base-Tx/Sx protocol, as well as full duplex and half duplex mode. The transmission media adopts Cat5 twisted-pair with typical length of 100 meter. It features the function of automatically identifying the through line and cross wire (10/100M).
In conformity to IEEE 802.3 10Base-T standard and IEEE 802.3u 100Base-Tx/Sx. Max. 2M buffer memory built in chip. Back pressure flow control for full duplex IEEE802.3 X and half duplex. Automatic identification of MDI/MDI-X cross line. High performance 1.4Gpbs memory bandwidth. In conformity to safety code of FCC and 15 CLASS A and CE MARK.
- 10/100 Mbps Ethernet Conversion
- 850 nm Multimode Fiber Operation
- Supports 50/125, 62.5/125, and 100/140 Micron Fiber
- Full- and Half-Duplex Operation
- Maximum Transmission Distance: 2 km
- Extends Ethernet Connections Across Fiber Links
- Automatically Detects Straight-Through and Crossover Cables
- Supports Reliable 10Base-T and 100Base-TX/SX Networks
- Delivers Stable Data Transfer with Flow Control
- Simplifies Copper-to-Fiber Network Integration
