Gigabit Fiber Media Converter - 1000Base-LX, Multimode, 550m, 1310nm, PoE
- P/N
- FT-1000POE
Available configurations 3
- Gigabit Fiber Media Converter - 1000Base-LX, LC Singlemode, 20km, 1310nm, PoE
- Gigabit Fiber Media Converter - 1000Base-LX, LC Singlemode, 40km, 1310nm, PoE
- Gigabit Fiber Media Converter - 1000Base-SX, LC Multimode, 550m, 850nm, PoE
| Configuration | SKU | GTIN | MSRP | Color | Maximum Data Transfer Rate | Connector | Fiber Type | Connector B | Connector A | Maximum Transfer Distance | Wavelength | Manufacturer | PoE Support | Input Voltage | Input Current | Output Voltage | Output Current | Auto MDI/MDIX | Warranty | RoHS Compliant |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Gigabit Fiber Media Converter - 1000Base-LX, LC Singlemode, 20km, 1310nm, PoE | FT-1000SM20POE-LC | 00845425021335 | $336.79 | Gray | 1 Gbps | LC | Singlemode | RJ45 Female | LC Female | 20km | 1310nm | Networx® | Yes | 85 - 240V AC | 0.28 A | 5V DC | 1 A | Yes | 3 Year Warranty | Yes |
| Gigabit Fiber Media Converter - 1000Base-LX, LC Singlemode, 40km, 1310nm, PoE | FT-1000SM40POE-LC | 00845425021342 | $456.39 | Gray | 1 Gbps | LC | Singlemode | RJ45 Female | LC Female | 40km | 1310nm | Networx® | Yes | 85 - 240V AC | 0.28 A | 5V DC | 1 A | Yes | 3 Year Warranty | Yes |
| Gigabit Fiber Media Converter - 1000Base-SX, LC Multimode, 550m, 850nm, PoE | FT-1000MMPOE-LC | 00845425021359 | $336.79 | Gray | 1 Gbps | LC | Multimode | RJ45 Female | LC Female | 550m | 850nm | Networx® | Yes | 85 - 240V AC | 0.28 A | 5V DC | 1 A | Yes | 3 Year Warranty | Yes |
About this family
This Networx® Fiber Media Converter is classified as Power Sourcing Equipment (PSE) which combine data transfer over a fiber link and providing power to a Powered Device (PD) over CAT5e/CAT6 UTP Cable (Maximum length of 100 meters.)
The Media Converter complies with IEEE 802.3z, IEEE 802.3AB Standards. It is designed to convert data signal between 10/100/1000Base-T and 1000Base-LX fast Ethernet. It supports 10/100/1000Base-T and 1000Base-LX applications. The data signal converted by such high performance media converter can be transmitted up to 550 meters maximum over multimode fiber.

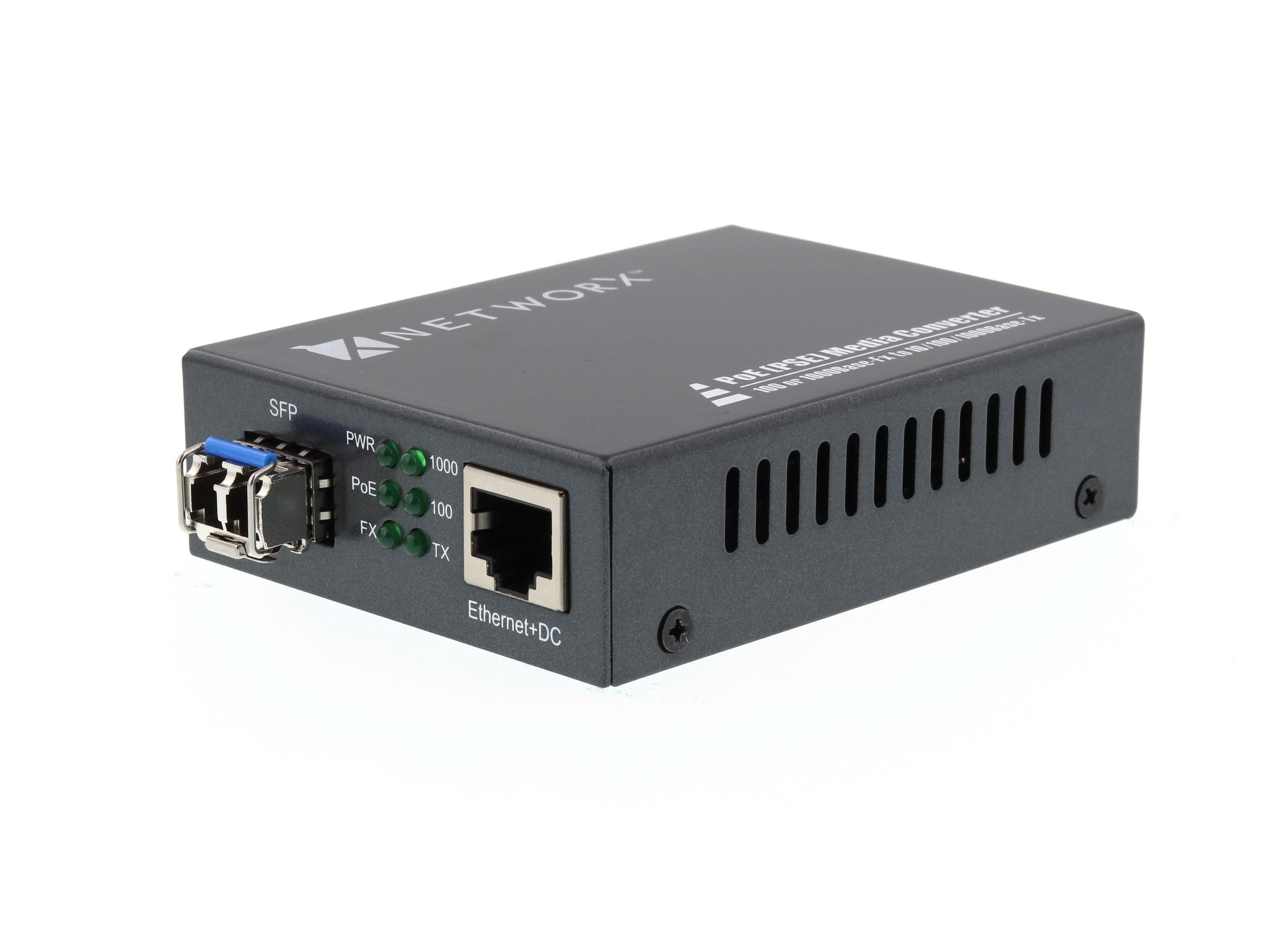

The Converter is equipped with two fiber optic connector ports (One for transmitting-TX and another for receiving-RX) and one RJ-45 Jack and one external power supply receptacle. Six LED indicators are built-in for easy diagnosing and monitoring the status of power, Unshielded Twisted Paired (UTP) Link, UTP Activity, Fiber Link, Fiber Activity, Full duplex and data rates. It can be configured automatically for Full Duplex or Half Duplex operation.
- 10/100/1000 Mbps Auto-Negotiation
- IEEE 802.3af/at PoE PSE Support
- 1310 nm Multimode Fiber Operation
- Supports 50/125 and 62.5/125 Micron Fiber
- Built-In Over-Current Protection
- Extends Fiber Connections up to 550 Meters
- Delivers Data and Power Over One Ethernet Cable
- Supports PoE Devices up to 100 Meters Away
- Converts Copper Ethernet to Fiber Connectivity
- Simplifies Powered Network Device Installations
