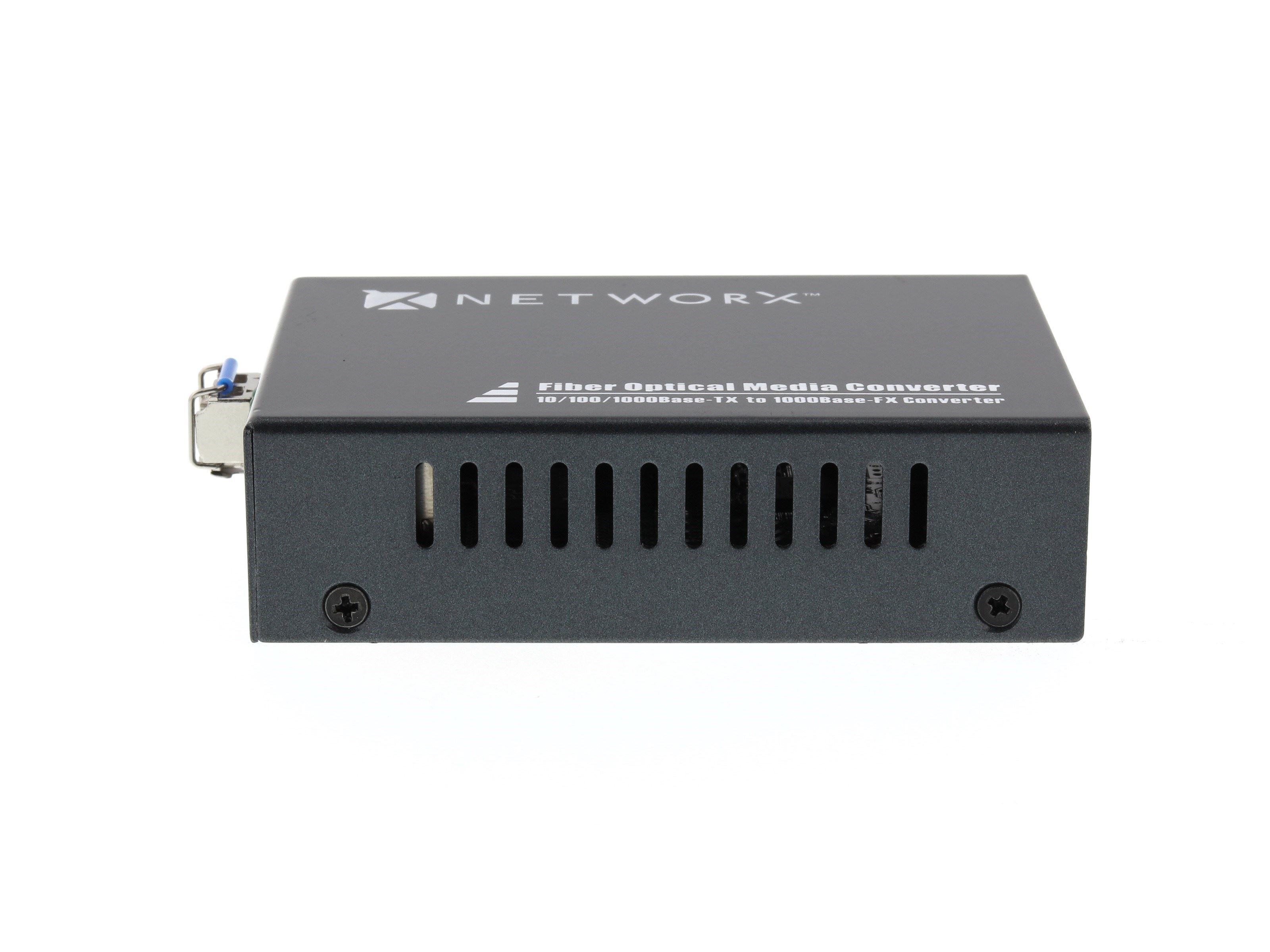

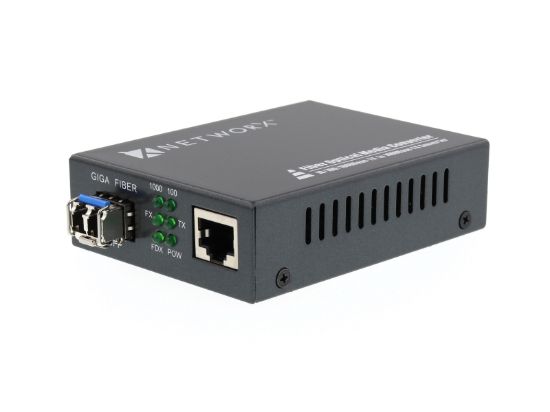

Gigabit Fiber Media Converter - 1000Base-LX, Singlemode, 20km, 1310nm
- P/N
- FT-1000SM20
Available configurations 3
- Gigabit Fiber Media Converter - 1000Base-LX, LC Singlemode, 20km, 1310nm
- Gigabit Fiber Media Converter - 1000Base-LX, SC Singlemode, 20km, 1310nm
- Gigabit Fiber Media Converter - 1000Base-LX, ST Singlemode, 20km, 1310nm
| Configuration | SKU | GTIN | MSRP | Color | Connector | Connector A | Connector B | Fiber Type | Maximum Data Transfer Rate | Maximum Transfer Distance | Wavelength | Manufacturer | Input Voltage | Input Current | Output Voltage | Output Current | Auto MDI/MDIX | Warranty | RoHS Compliant |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Gigabit Fiber Media Converter - 1000Base-LX, LC Singlemode, 20km, 1310nm | FT-1000SM20-LC | 00845425008169 | $147.79 | Gray | LC, RJ45 | LC Female | RJ45 Female | Singlemode | 1 Gbps | 20km | 1310nm | Networx® | 85 - 240V AC | 0.28 A | 5V DC | 1 A | Yes | 3 Year Warranty | Yes |
| Gigabit Fiber Media Converter - 1000Base-LX, SC Singlemode, 20km, 1310nm | FT-1000SM20-SC | 00845425008176 | $147.79 | Gray | SC, RJ45 | SC Female | RJ45 Female | Singlemode | 1 Gbps | 20km | 1310nm | Networx® | 85 - 240V AC | 0.28 A | 5V DC | 1 A | Yes | 3 Year Warranty | Yes |
| Gigabit Fiber Media Converter - 1000Base-LX, ST Singlemode, 20km, 1310nm | FT-1000SM20-ST | 00845425008183 | $147.79 | Gray | ST, RJ45 | ST Female | RJ45 Female | Singlemode | 1 Gbps | 20km | 1310nm | Networx® | 85 - 240V AC | 0.28 A | 5V DC | 1 A | Yes | 3 Year Warranty | Yes |
About this family
The Media Converter complies with IEEE 802.3z, IEEE 802.3AB Standards. It is designed to convert data signal between 10/100/1000Base-T and 1000Base-LX Gigabit Ethernet. It supports 10/100/1000Base-T and 1000Base-LX applications. The data signal converted by such high performance media converter can be transmitted up to 80Km maximum by fiber-optical cable.

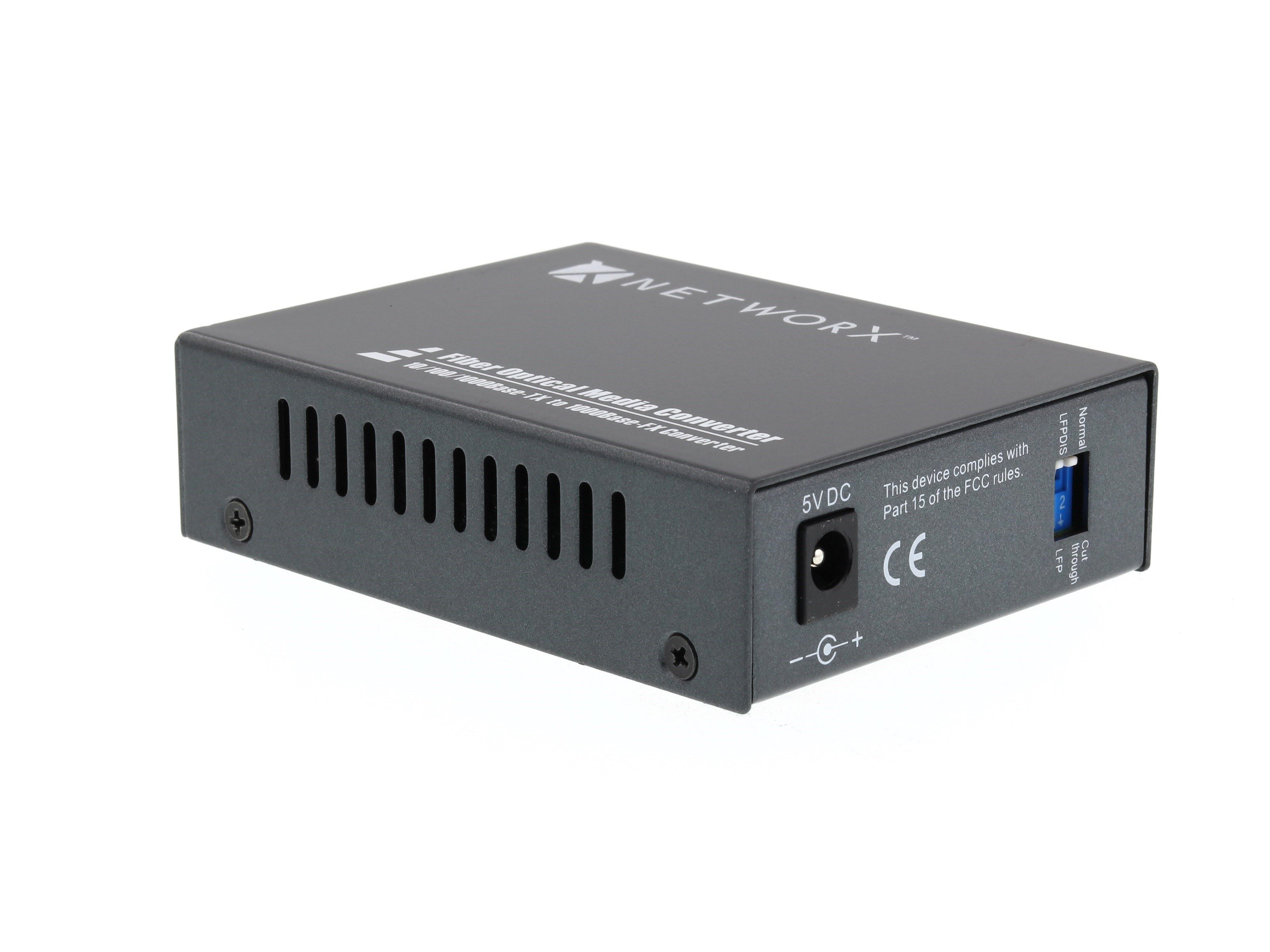

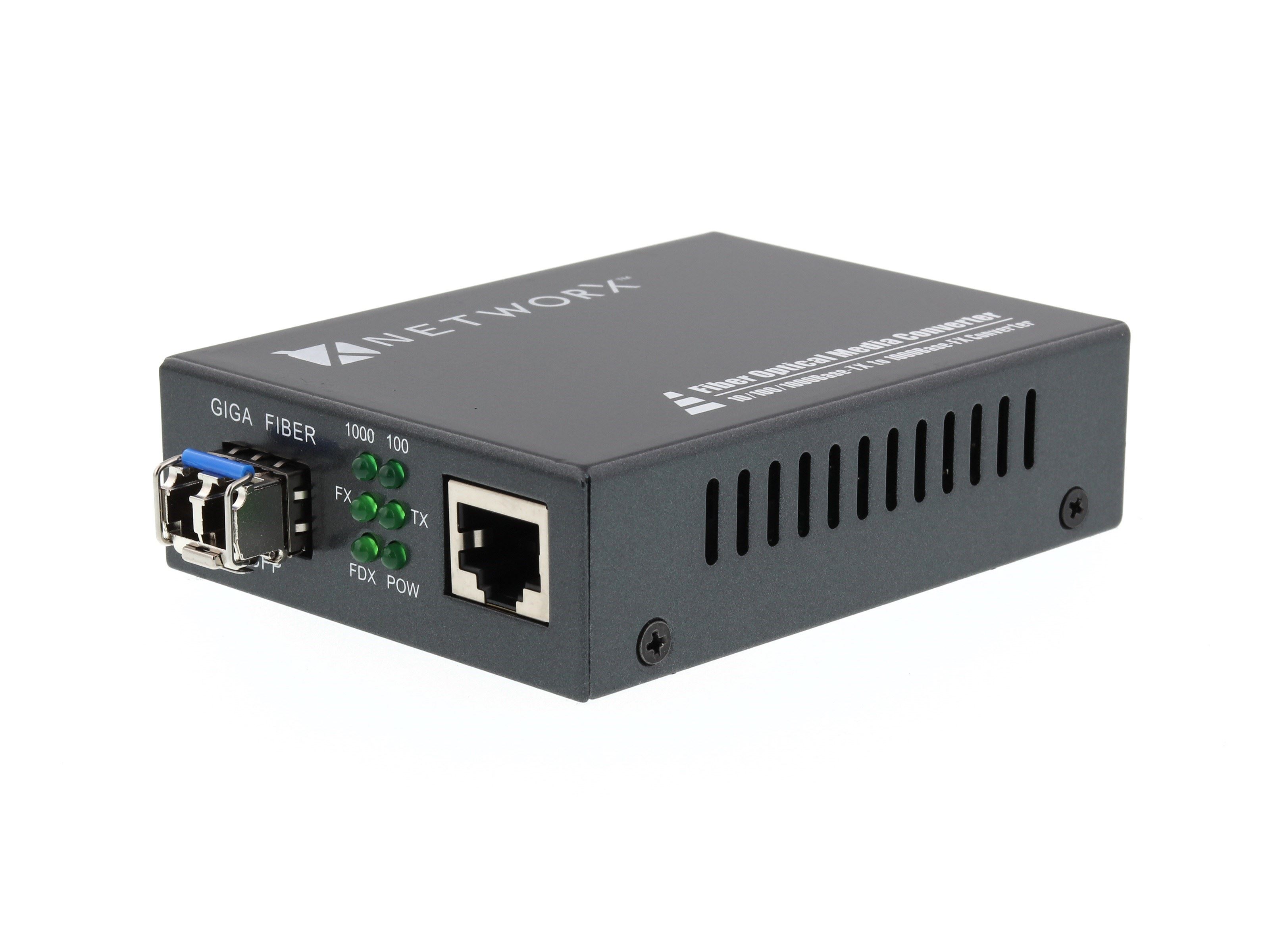

The Converter is equipped with single fiber optic connectors (One for transmitting-TX and another for receiving-RX) and one RJ-45 Jack and one external pwer supply receptacle. Six LED indicators are built-in for easy diagnosing and monitoring the status of power, Unshielded Twisted Paired (UTP) Link, UTP Activity, Fiber Link, Fiber Activity, Full duplex and data rates. It can be configured automatically for Full Duplex or Half Duplex operation.
It is compact, cost-effective, low dissipative, high reliable and stable. It can be used in standalone applications, or Rack-Mounted applications where multiple media converters can be inserted into a rack-mount chassis (up to 16 units), and allowing all the converters to be powered by a single internal power supply.
Note: Mode Conditioning cable recommended if running over legacy Multimode Backbone
- 10/100/1000 Mbps Auto-Negotiation
- 1310 nm Singlemode Fiber Operation
- Supports 9/125 Micron Singlemode Fiber
- Half- and Full-Duplex UTP Modes
- Maximum Transmission Distance: 20 km
- Extends Network Connections Across Long Distances
- Converts Copper Ethernet to Fiber Connectivity
- Supports 1000Base-LX Gigabit Applications
- Delivers Reliable Long-Distance Data Transmission
- Simplifies Standalone or Rack-Mounted Installations
