8 configurations in this family

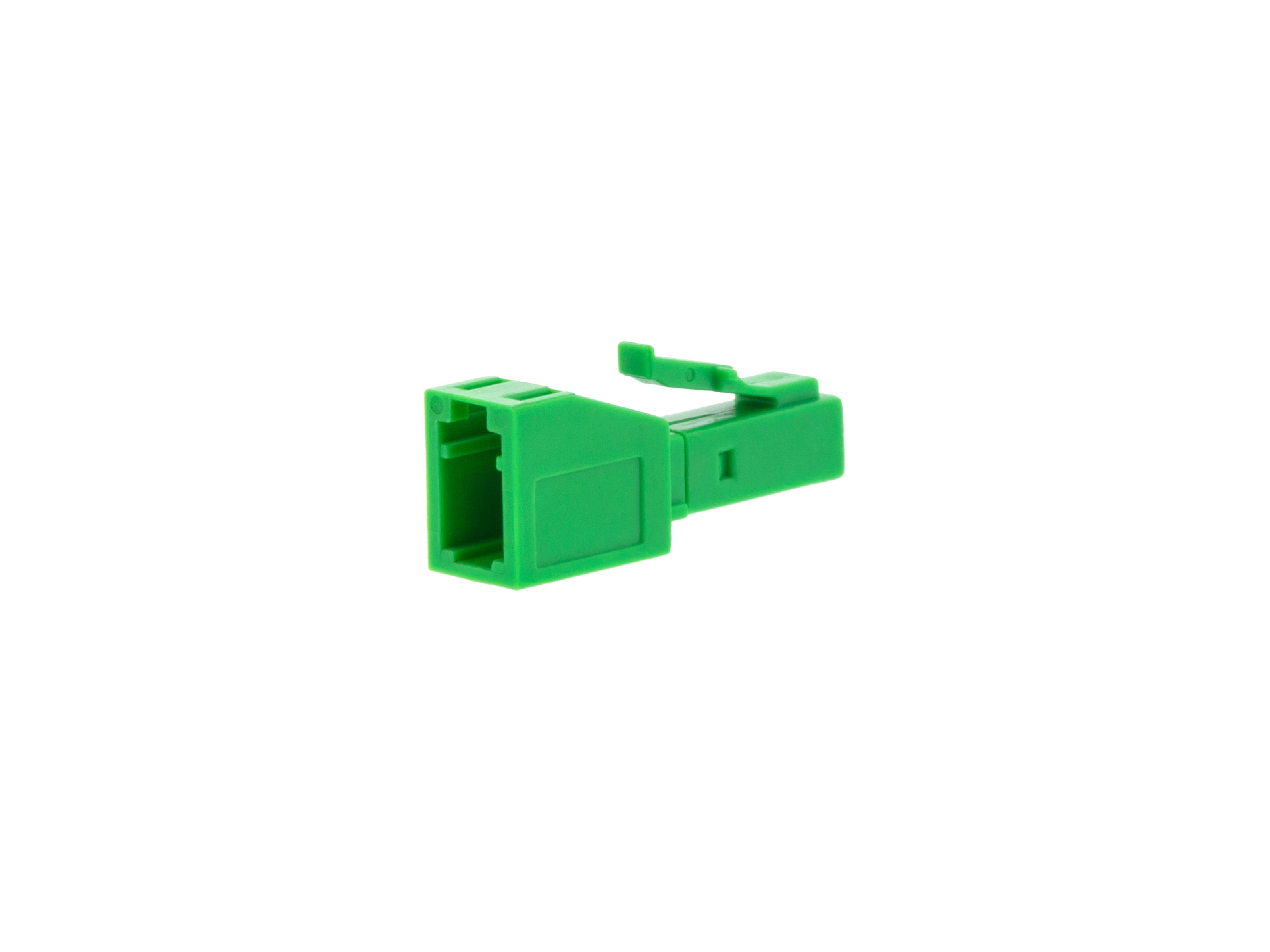

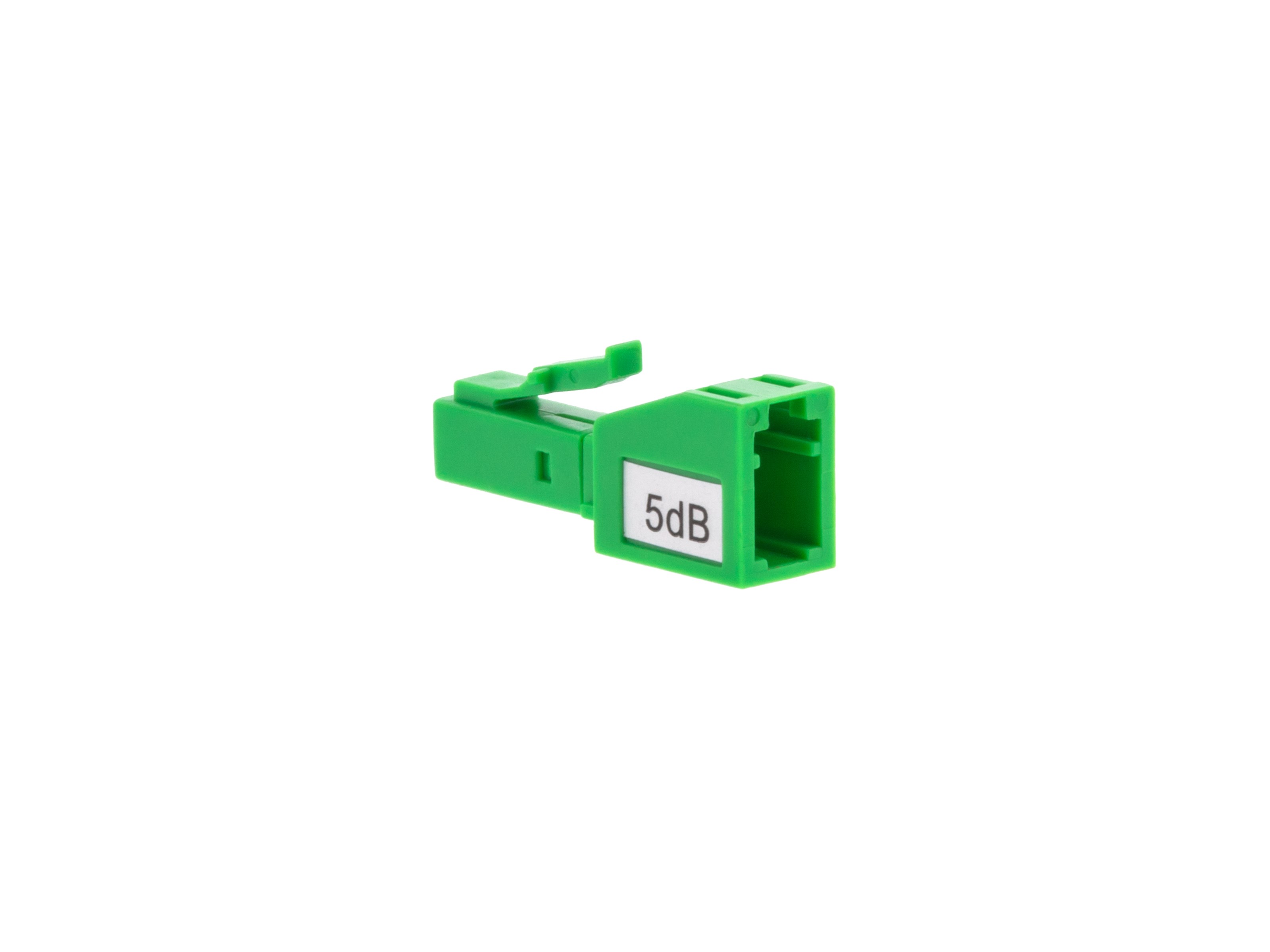

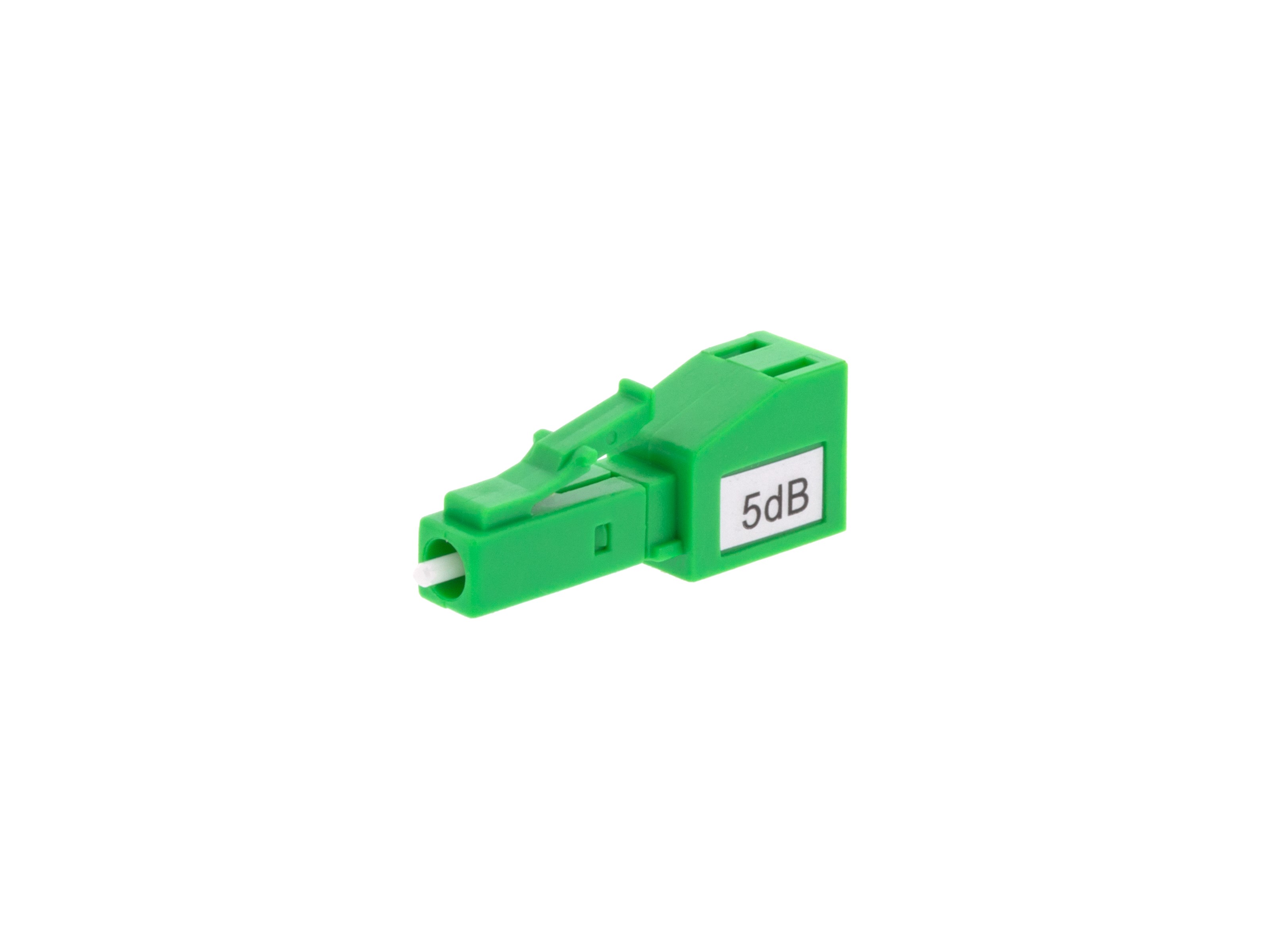

LC Fixed Fiber Optic Attenuators
LC Fixed Fiber Optic Attenuators reduce optical signal power by a controlled amount in compatible singlemode fiber applications.
- P/N
- FA-LCSM
Available configurations 8
- Fiber Optic Attenuator, Fixed - LC/APC 5dB
- Fiber Optic Attenuator, Fixed - LC/APC 10dB
- Fiber Optic Attenuator, Fixed - LC/APC 15dB
- Fiber Optic Attenuator, Fixed - LC/APC 20dB
- Fiber Optic Attenuator, Fixed - LC/UPC 5dB
- Fiber Optic Attenuator, Fixed - LC/UPC 10dB
- Fiber Optic Attenuator, Fixed - LC/UPC 15dB
- Fiber Optic Attenuator, Fixed - LC/UPC 20dB
| Configuration | SKU | GTIN | MSRP | Color | Connector A | Connector B | Manufacturer | Wavelength | Fiber Type | Polish Type | Attenuation | Warranty |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Fiber Optic Attenuator, Fixed - LC/APC 5dB | FA-ALCSM-05 | 00845425008350 | $14.69 | Green | LC Male | LC Female | Networx® | 1550nm | Singlemode | Angled Physical Contact (APC) | 5db | Lifetime Warranty |
| Fiber Optic Attenuator, Fixed - LC/APC 10dB | FA-ALCSM-10 | 00845425008367 | $14.69 | Green | LC Male | LC Female | Networx® | 1550nm | Singlemode | Angled Physical Contact (APC) | 10db | Lifetime Warranty |
| Fiber Optic Attenuator, Fixed - LC/APC 15dB | FA-ALCSM-15 | 00845425008374 | $14.69 | Green | LC Male | LC Female | Networx® | 1550nm | Singlemode | Angled Physical Contact (APC) | 15db | Lifetime Warranty |
| Fiber Optic Attenuator, Fixed - LC/APC 20dB | FA-ALCSM-20 | 00845425008381 | $14.69 | Green | LC Male | LC Female | Networx® | 1550nm | Singlemode | Angled Physical Contact (APC) | 20db | Lifetime Warranty |
| Fiber Optic Attenuator, Fixed - LC/UPC 5dB | FA-ULCSM-05 | 00845425008435 | $11.29 | Blue | LC Male | LC Female | Networx® | 1550nm | Singlemode | Ultra Physical Contact (UPC) | 5db | Lifetime Warranty |
| Fiber Optic Attenuator, Fixed - LC/UPC 10dB | FA-ULCSM-10 | 00845425008442 | $11.29 | Blue | LC Male | LC Female | Networx® | 1550nm | Singlemode | Ultra Physical Contact (UPC) | 10db | Lifetime Warranty |
| Fiber Optic Attenuator, Fixed - LC/UPC 15dB | FA-ULCSM-15 | 00845425008459 | $11.29 | Blue | LC Male | LC Female | Networx® | 1550nm | Singlemode | Ultra Physical Contact (UPC) | 15db | Lifetime Warranty |
| Fiber Optic Attenuator, Fixed - LC/UPC 20dB | FA-ULCSM-20 | 00845425008466 | $11.29 | Blue | LC Male | LC Female | Networx® | 1550nm | Singlemode | Ultra Physical Contact (UPC) | 20db | Lifetime Warranty |
About this family
LC Fixed Fiber Optic Attenuators provide a reliable way to reduce optical signal strength in compatible singlemode fiber networks. Available in APC and UPC polish options with 5 dB, 10 dB, 15 dB, and 20 dB attenuation levels, these compact attenuators help balance signal power and protect sensitive network equipment from excessive optical input. They are well suited for telecommunications, data center, test, and fiber distribution applications.
- Designed for compatible singlemode fiber optic applications
- Available in APC and UPC polish options
- Offered in 5 dB, 10 dB, 15 dB, and 20 dB attenuation levels
- Helps reduce excessive optical signal power
- Supports signal balancing in fiber optic networks
- Compact fixed-attenuation design
- Suitable for telecommunications, data centers, testing, and fiber distribution systems
- Installs directly into compatible fiber connections
