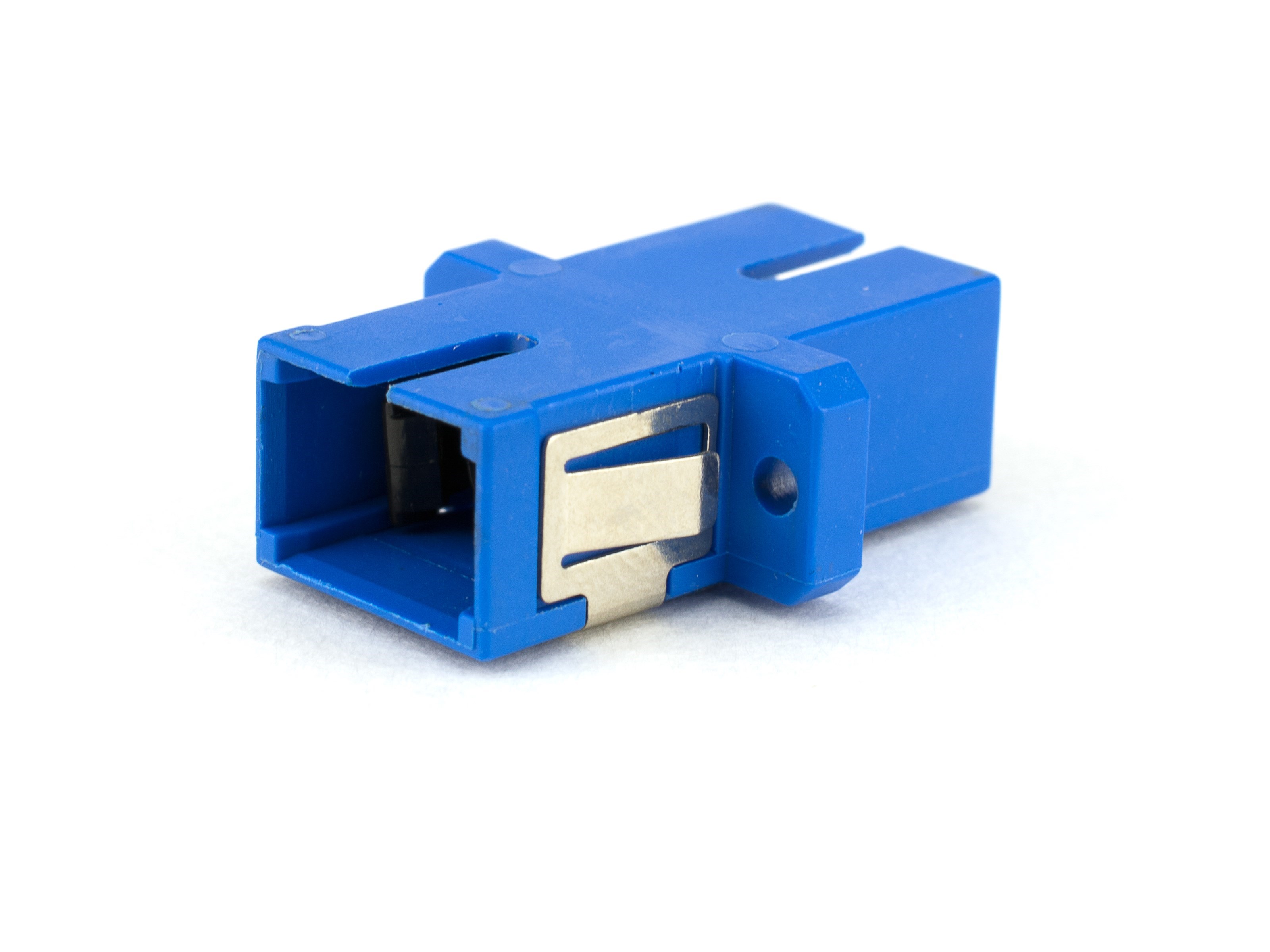

SC/UPC Fixed Fiber Optic Attenuators
Fixed SC/UPC fiber optic attenuators designed to reduce optical power in singlemode networks, available in 5 dB, 10 dB, 15 dB, and 20 dB options.
These SC/UPC Fixed Fiber Optic Attenuators are designed to reduce excessive optical signal power and help prevent receiver saturation in singlemode fiber networks. Available in 5 dB, 10 dB, 15 dB, and 20 dB attenuation levels, they support 1310 nm and 1550 nm operating wavelengths, feature UPC polishing with a return loss of at least 55 dB, and provide wavelength-independent attenuation for dependable use in telecom systems, fiber distribution networks, test environments, and other optical installations.
- Available in 5 dB, 10 dB, 15 dB, and 20 dB attenuation levels
- Supports 1310 nm and 1550 nm operating wavelengths
- UPC polish with return loss of at least 55 dB
- SC female-to-female configuration
- Wavelength-independent fixed attenuation
- Helps prevent optical receiver saturation
- Supports lower bit error rates in fiber links
- Helps protect sensitive receiving components
- Ideal for balancing optical power in network installations
- Provides a simple solution for managing excessive signal strength
