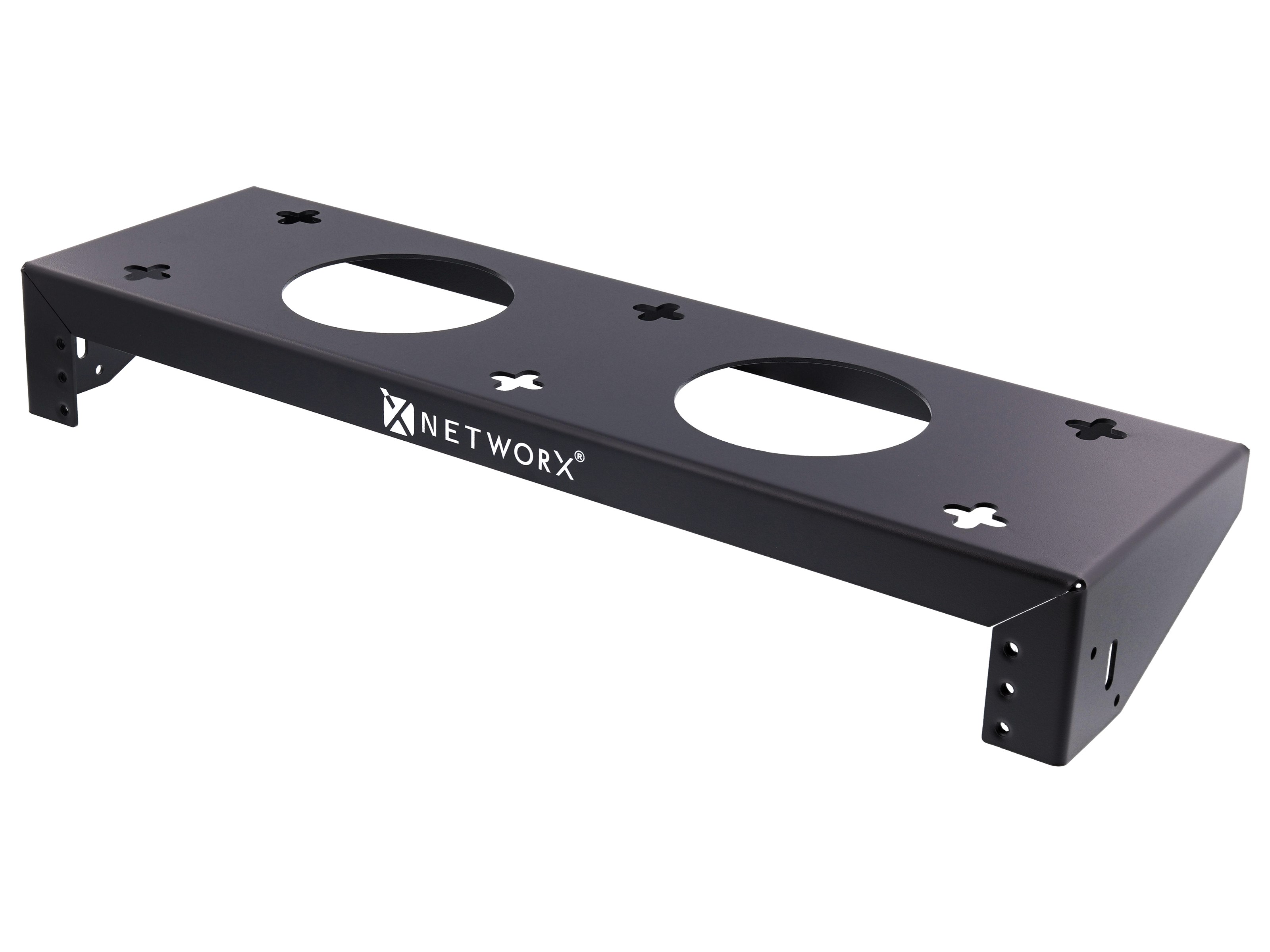

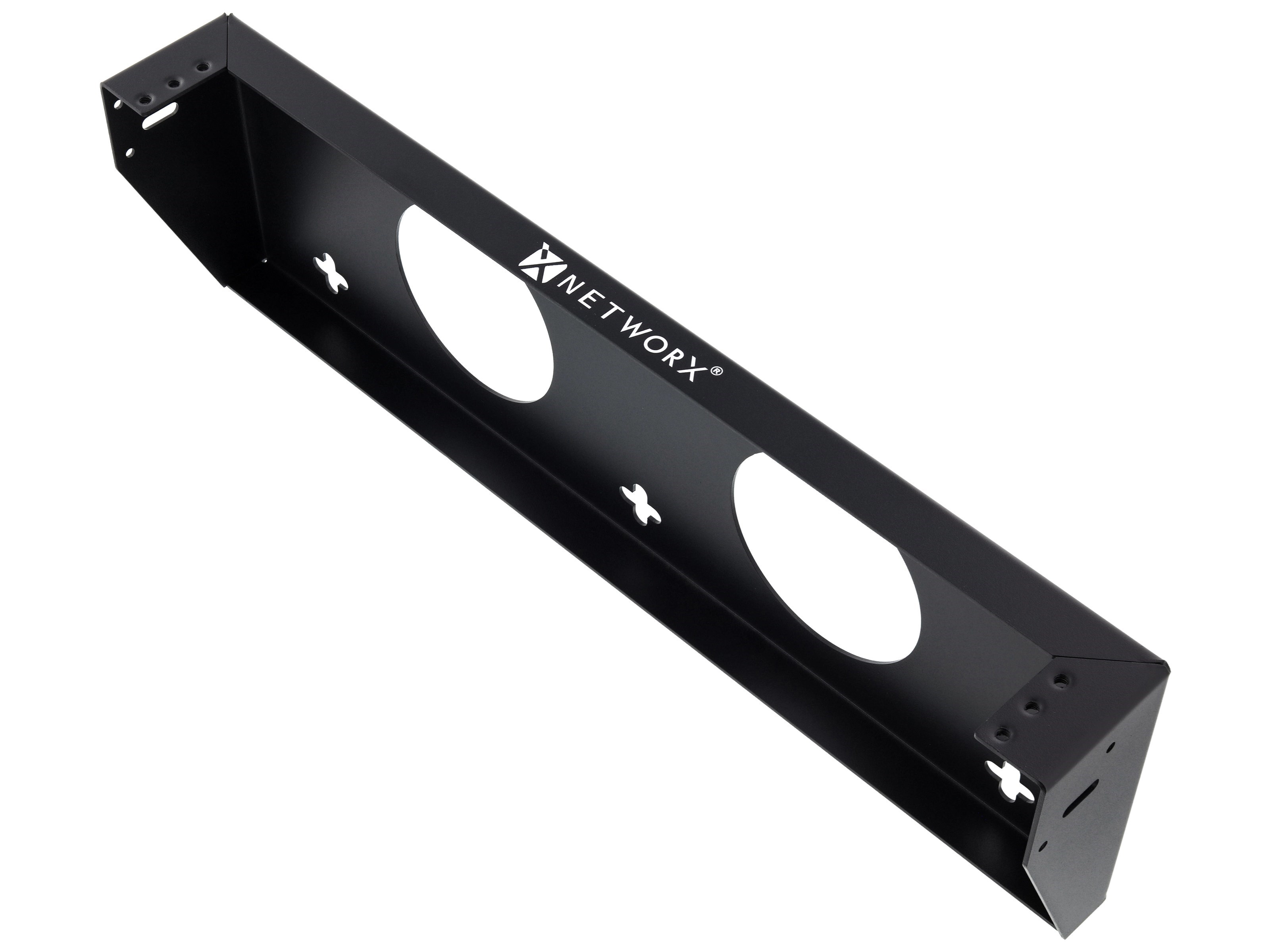

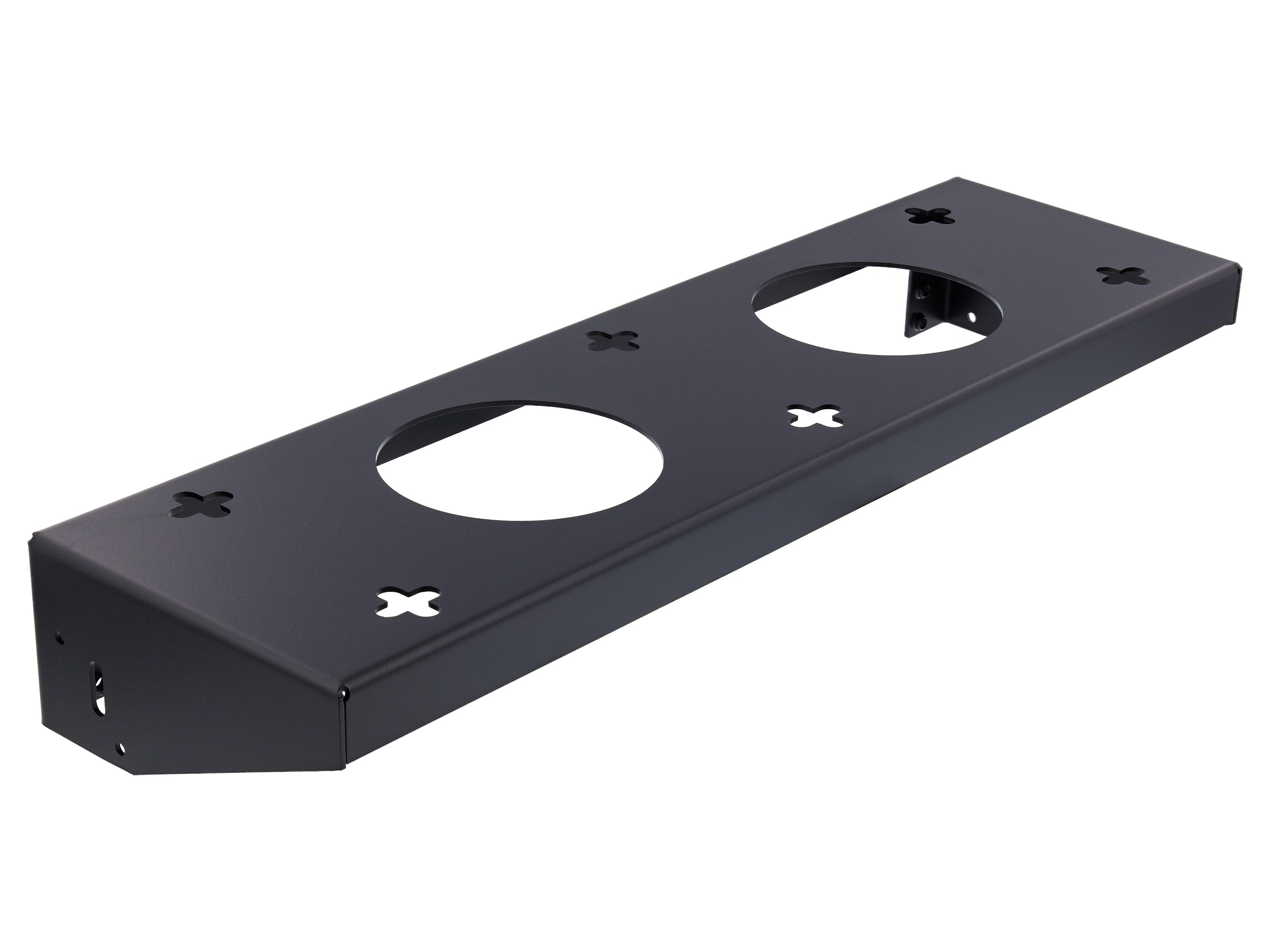

Vertical Wall Mount Brackets

Vertical Wall Mount Brackets provide a compact way to mount standard 19-inch rack equipment directly to a wall without using a full-size rack.
Key specifications
P/N
WMB-UV
Configurations

Available configurations 5

  • 1u Vertical Wall Mount Bracket - Black
    WMB-1UV $41.99
  • 2u Vertical Wall Mount Bracket - Black
    WMB-2UV $50.29
  • 3u Vertical Wall Mount Bracket - Black
    WMB-3UV $57.29
  • 4u Vertical Wall Mount Bracket - Black
    WMB-4UV $65.59
  • 6u Vertical Wall Mount Bracket - Black
    WMB-6UV $84.29
ConfigurationSKUGTINMSRPColorManufacturerRMUWarrantyMount StyleDepthHeightWidth
1u Vertical Wall Mount Bracket - BlackWMB-1UV00845425025616$41.99BlackNetworx®1ULifetime WarrantyVertical Mount3 Inch6 Inch20.25 Inch
2u Vertical Wall Mount Bracket - BlackWMB-2UV00845425025623$50.29BlackNetworx®2ULifetime WarrantyVertical Mount4.5 Inch6 Inch20.25 Inch
3u Vertical Wall Mount Bracket - BlackWMB-3UV00845425025630$57.29BlackNetworx®3ULifetime WarrantyVertical Mount6.5 Inch6 Inch20.25 Inch
4u Vertical Wall Mount Bracket - BlackWMB-4UV00845425025647$65.59BlackNetworx®4ULifetime WarrantyVertical Mount8 Inch6 Inch20.25 Inch
6u Vertical Wall Mount Bracket - BlackWMB-6UV00845425025654$84.29BlackNetworx®6ULifetime WarrantyVertical Mount11.5 Inch6 Inch20.25 Inch
Solution overview

About this family

Networx® Vertical Wall Mount Brackets are designed for space-saving installations where a traditional equipment rack is unnecessary or impractical. Available in 1U, 2U, 3U, 4U, and 6U sizes, each bracket features a universal 19-inch mounting profile and can be installed with the mounting holes positioned on either the left or right side. These brackets are compatible with Networx® patch panels as well as other standard 19-inch rack equipment, making them a practical choice for home networks, telecom spaces, and professional structured cabling installations.

  • Available in 1U through 6U sizes
  • Universal 19-inch mounting profile
  • Vertical wall-mount design
  • Left or right-side mounting
  • Designed for standard rack equipment
  • Saves valuable installation space
  • Eliminates bulky full-size racks
  • Supports clean equipment mounting
  • Works well in tight locations
  • Ideal for small network installations
